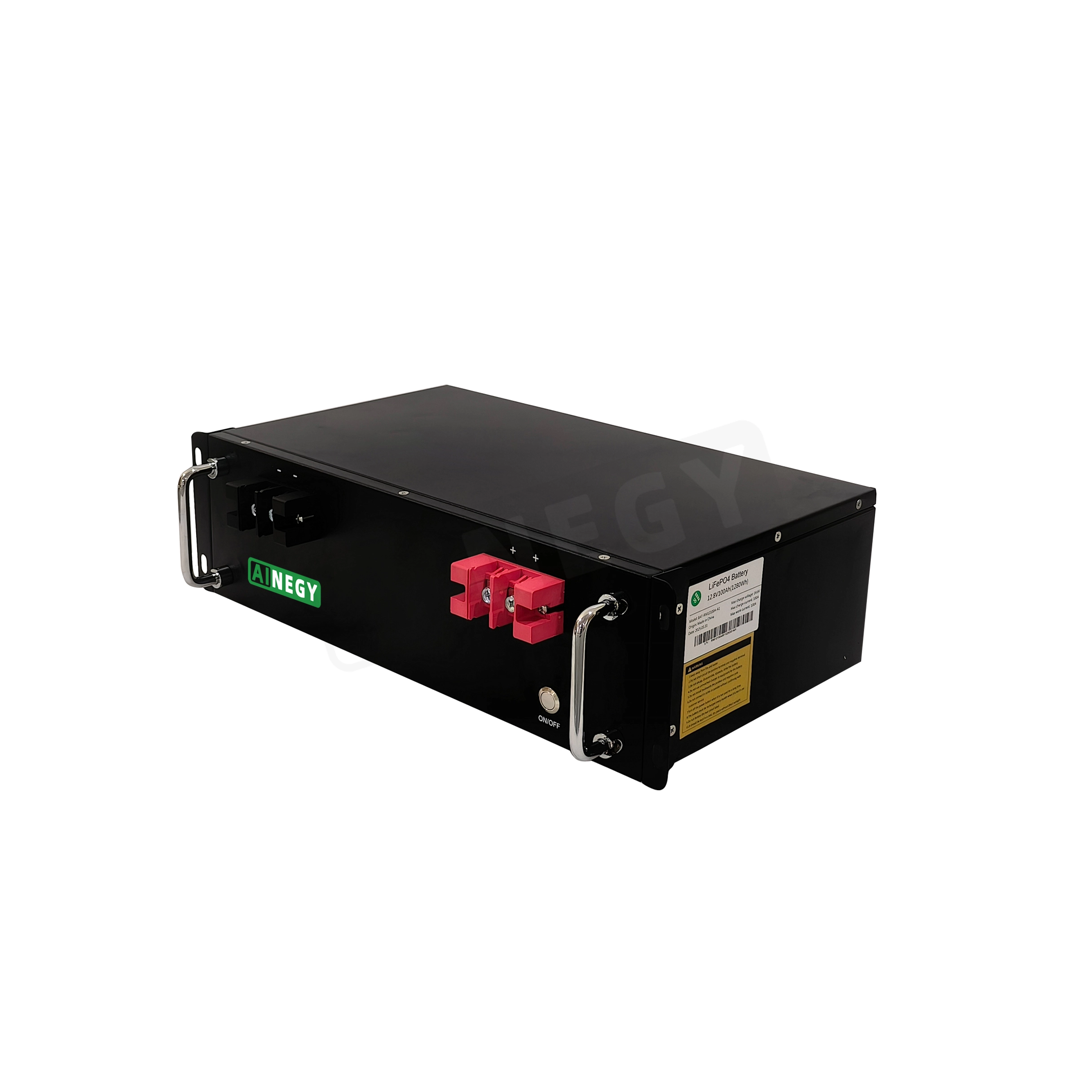

1.28KWh12.8V100Ah Rack Mount solar energy storage battery LiFePO4 battery for Residential
This is a lithium iron phosphate solar energy storage battery for home energy storage system.lt has multiple protection functions to protect the safety of power supply inan all-round way,the output is stable and can be connected to different loads with in the voltage rang,long cycle life.
5.0
like
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Advantage
● BMS self-developed
● Communication protocol customization
● 15 layers of protection
● Supports Hybrid Use of new and old Batteries
Product Parameters
| Model |
IYP-RM12100A-A1 |
IYP-RM12200A-A1 | IYP-RM25100A-A1 | IYP-RM51100A-A1 | IYP-RM51150A-A1 | IYP-RM51200A-A1 | IYP-RM51280A-A1 | IYP-RM51314A-A1 |
| Battery Type | LiFePO4 Battery | |||||||
| Battery Style | 12.8V100Ah | 12.8V200Ah | 25.6V100Ah | 51.2V100Ah | 51.2V150Ah | 51.2V200Ah | 51.2V280Ah | 51.2V314Ah |
| Battery Energy | 1.28KWh | 2.56KWh | 2.56KWh | 5.12KWh | 7.5KWh | 10.24KWh | 14.3KWh | 16KWh |
| Nominal Voltage | 12.8V | 12.8V | 25.6V | 51.2V | 51.2V | 51.2V | 51.2V | 51.2V |
| Rated Capacity | 100Ah | 200Ah | 100Ah | 100Ah | 150Ah | 200Ah | 280Ah | 314Ah |
| End-of-Charge-Voltage | 14.6V | 14.6V | 29.2V | 54.0V/58.0V | ||||
| End-of-Discharge-Voltage | 10.0V | 10.0V | 21.0V | 39.0V/42.0V | ||||
| Strandard Charge Current | 50A | |||||||
| Max. Charge Current | 50A/100A | 100A | 50A/100A | 50A/100A | 75A/100A | 100A | 100A/150A | 100A/150A |
| Strandard Discharge Current | 100A | |||||||
| Max. Discharge Current | 100A | 100A | 100A | 100A | 100A | 150A/200A | 200A | 200A |
| Max. Peak Current | 120A | 200A | 300A | |||||
| Charge/Discharge Interface | 2P/ M8 Terminal (optional) | |||||||
| Communication Interface | RS485/CAN | |||||||
| Shell Material/Color | Metal/ White (color optional) | |||||||
| Work Temperature Range |
Charge：0℃~50℃ Dischage：-15℃~60℃ |
|||||||
| Size(mm) | 442*133*260mm | 442*133*260mm | 442*133*260mm | 442*420*133mm | 442*450*168mm | 442*420*266mm | 442*420*720mm | 442*420*720mm |
| Weight(kg) | 13.7kg (about) | 20kg (about) | 22kg (about) | 40/43kg (about) | 63/66kg (about) | 78/80kg (about) | 100/105kg (about) | 100/105kg (about) |
product details
RM-12V100Ah-2
RM-12V100Ah-3
System working principle diagram
Q&A
1
What certificates for your products you have?
IEC, UL, CE, CEI, RoHS, UN38.3, MSDS, FCC, PSE, VDE, Dangerous Package Certificate, etc.
2
For your Battery, what brand inverter they can be compatible?
Deye, Growatt, Goodwe, Sofar, Pylon, Victron, Solis, SMA, Luxpower, Voltronics, Megarevo, SRNE etc 20pcs above Global Famous Brand.
3
Which country you export already?
Japan, Austria, Germany, Poland, Italy, USA, South Africa, Nigeria, Myanmar, Philippines etc.
4
Do you support ODM? Can we get a customize logo and color on your products?
Yeah. We support OEM, besides we can offer ODM Research and Development.
5
How about your Aftersales?
We can support our core technical engineer team remote solve your troubles, remote solution video, and upgrade program.If no working products we can replacement.
