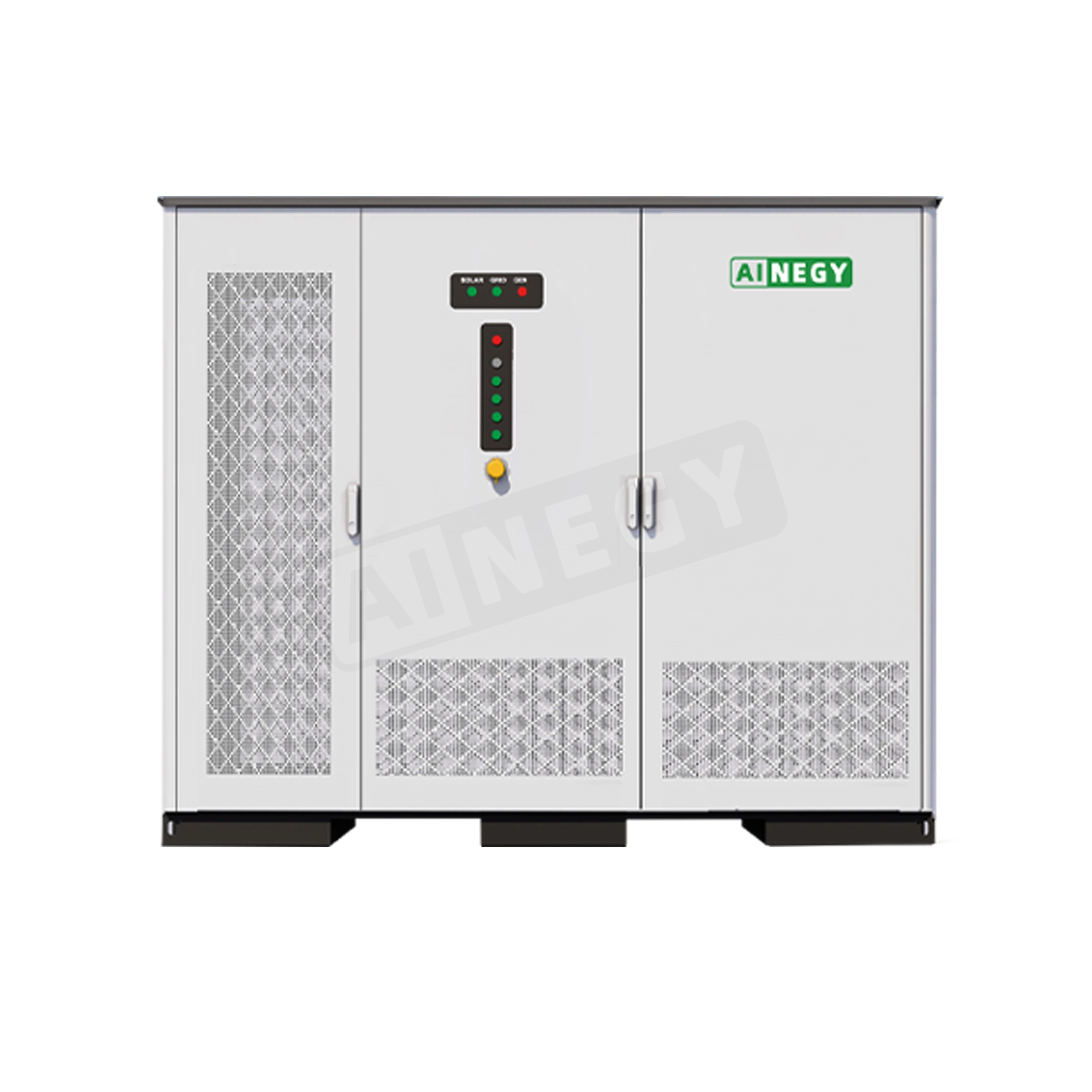

250kW/520kWh PVDG BESS Battery+PCS+MPPT+Generator Port
This 250kW/520kWh it features BMS/EMS for cell-level monitoring, peak-valley arbitrage, demand management, and backup power. Remote monitoring provides real-time data, while safety is ensured by aerosol fire suppression, liquid cooling, and IP54 protection. Ideal for malls, schools, hospitals, and similar applications.
5.0
like
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Prduct Advantage
● Supports multiple units in parallel
● On/Off-grid switching time <10ms
● LiFePO4 Battery + PCS + MPPT + Generator Port
Product Parameters
| Model | 100KWh+50KW | 115KWh+50KW | 128KWh+60KW |
| Battery | |||
| Battery Type | LiFePO4 | ||
| Rated Energy | 100KWh | 115KWh | 128KWh |
| PV | |||
| Max. Power | 75KW | ||
| Max. PV Voltage | 850Vdc | ||
| MPPT Voltage Range | 200~800Vdc | ||
| Max. PV Current | 60A+60A | ||
| MPPT Channels | 2 | ||
| AC (On-grid) | |||
| Rated Power | 50KW | 50KW | 60KW |
| AC Voltage | 400Vac/230Vac | ||
| Rated Frequency | 50Hz/60Hz | ||
| Max. AC Current | 70A | 85A | |
| AC (Off-grid) | |||
| Rated Power | 50KW | ||
| AC Voltage | 400Vac/230Vac | ||
| AC Frequency | 50Hz/60Hz | ||
| Max. AC Current | 70A | 90A | |
| Switching Time | <10ms | ||
| Parallel Number | 3 | ||
| General Parameter | |||
| Communication Type | RS485/WiFi | ||
| IP Grade | IP54 | ||
| Fire Protection System | Yes | ||
| OperatingTemperature | -10~55℃ | ||
| Humidity Range | 5%~95% | ||
| Altitude | < 3000m | ||
| Battery Cooling Method | Air-Conditioner | ||
| PCS Cooling Method | Intelligent cooling | ||
| Dimensions(W*D*H) | 1060*1035*1850mm | 1060*1035*1850mm | 1060*1035*1850mm |
| Weight | 1200kg(about) | 1320kg(about) | 1350kg(about) |
product details
250kW/520kWh
System working principle diagram
Q&A
1
What certificates for your products you have?
IEC, UL, CE, CEI, RoHS, UN38.3, MSDS, FCC, PSE, VDE, Dangerous Package Certificate, etc.
2
For your Battery, what brand inverter they can be compatible?
Deye, Growatt, Goodwe, Sofar, Pylon, Victron, Solis, SMA, Luxpower, Voltronics, Megarevo, SRNE etc 20pcs above Global Famous Brand.
3
Which country you export already?
Japan, Austria, Germany, Poland, Italy, USA, South Africa, Nigeria, Myanmar, Philippines etc.
4
Do you support ODM? Can we get a customize logo and color on your products?
Yeah. We support OEM, besides we can offer ODM Research and Development.
5
How about your Aftersales?
We can support our core technical engineer team remote solve your troubles, remote solution video, and upgrade program.If no working products we can replacement.
