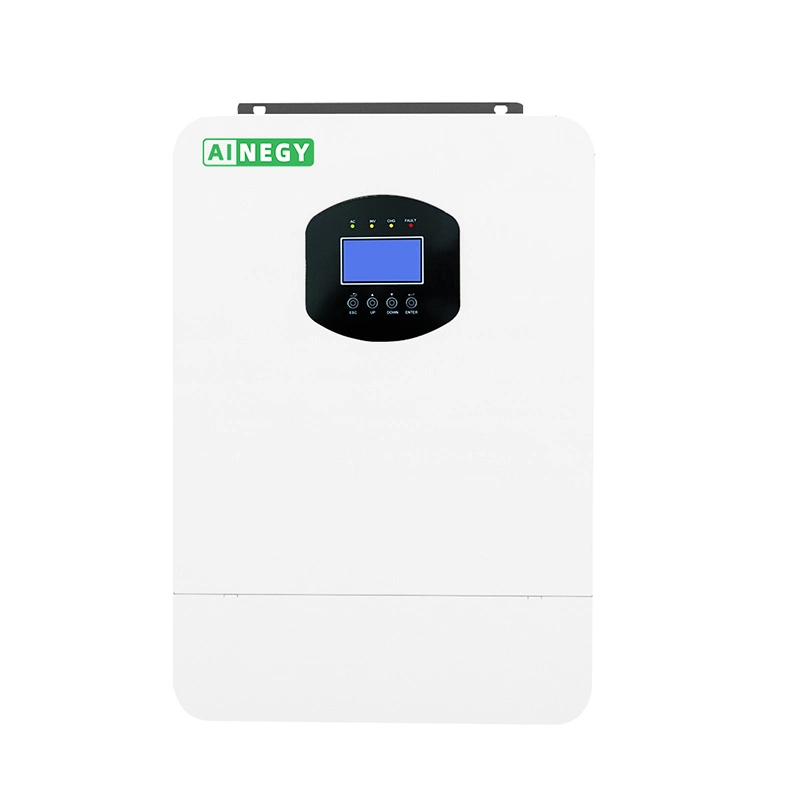

AINEGY Off-Grid Solar Hybrid Inverter 5KW For Home Energy Storage System
This is an off-grid 5KW photovoltaic energy storage inverter for home energy storage. It integrates photovoltaic MPPT, supports grid charging, communicates with lithium battery BMS, supports WiFi remote monitoring, and supports up to 6 units in parallel.
● Max support 9 sets parallel
● High voltage PV MPPT
● Fast charge current 100A
● Battery Voltage: 48VDC
● Rated Power: 5000W
5.0
like
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Prduct Advantage
● Support AC charge
● Support WiFi
● High voltage PV MPPT
● Fast charge current 100A
● Integrated UPS
● Max support 9 sets paralle
Product Parameters
| Model Name | AIN-5KF1-A1 |
| AC output | |
| Typical power output | 5000W |
| Typical voltage output | 230VAC+/-5% |
| Output frequency | 50/60Hz |
| Highest efficiency | 94% |
| Output wave | Pure sine wave |
| Conversion time | Typical 10mS, maximum 20mS |
| Battery | |
| Battery typical voltage | 48Vdc |
| Battery voltage range | 40~58Vdc |
| Battery type | Lithium battery/ Lead acid battery |
| PV | |
| Max. PV power | 5500W |
| Controller voltage range | 120~430Vdc |
| PV max. output voltage | 500Vdc |
| MPPT channels | 1 |
| PV max. charging current | 100A |
| AC input | |
| AC input voltage | 230Vac |
| AC input voltage range | 185~264Vac |
| AC input frequency | 50/60Hz adaptive |
| Others | |
| Max. number of parallels | 6 |
| Waterproof | IP21 |
| Working temperature range | —10~50℃ |
| Storage temperature range | —10~60℃ |
| Humidity range | 5% to 95% Relative Humidity (Non-condensing) |
| Size/mm | 335*125*480 |
| Weight/kg | 12 |
product details
3 (17)
2 (16)
1 (16)
System working principle diagram
Q&A
1
What certificates for your products you have?
IEC, UL, CE, CEI, RoHS, UN38.3, MSDS, FCC, PSE, VDE, Dangerous Package Certificate, etc.
2
For your Battery, what brand inverter they can be compatible?
Deye, Growatt, Goodwe, Sofar, Pylon, Victron, Solis, SMA, Luxpower, Voltronics, Megarevo, SRNE etc 20pcs above Global Famous Brand.
3
Which country you export already?
Japan, Austria, Germany, Poland, Italy, USA, South Africa, Nigeria, Myanmar, Philippines etc.
4
Do you support ODM? Can we get a customize logo and color on your products?
Yeah. We support OEM, besides we can offer ODM Research and Development.
5
How about your Aftersales?
We can support our core technical engineer team remote solve your troubles, remote solution video, and upgrade program.If no working products we can replacement.
