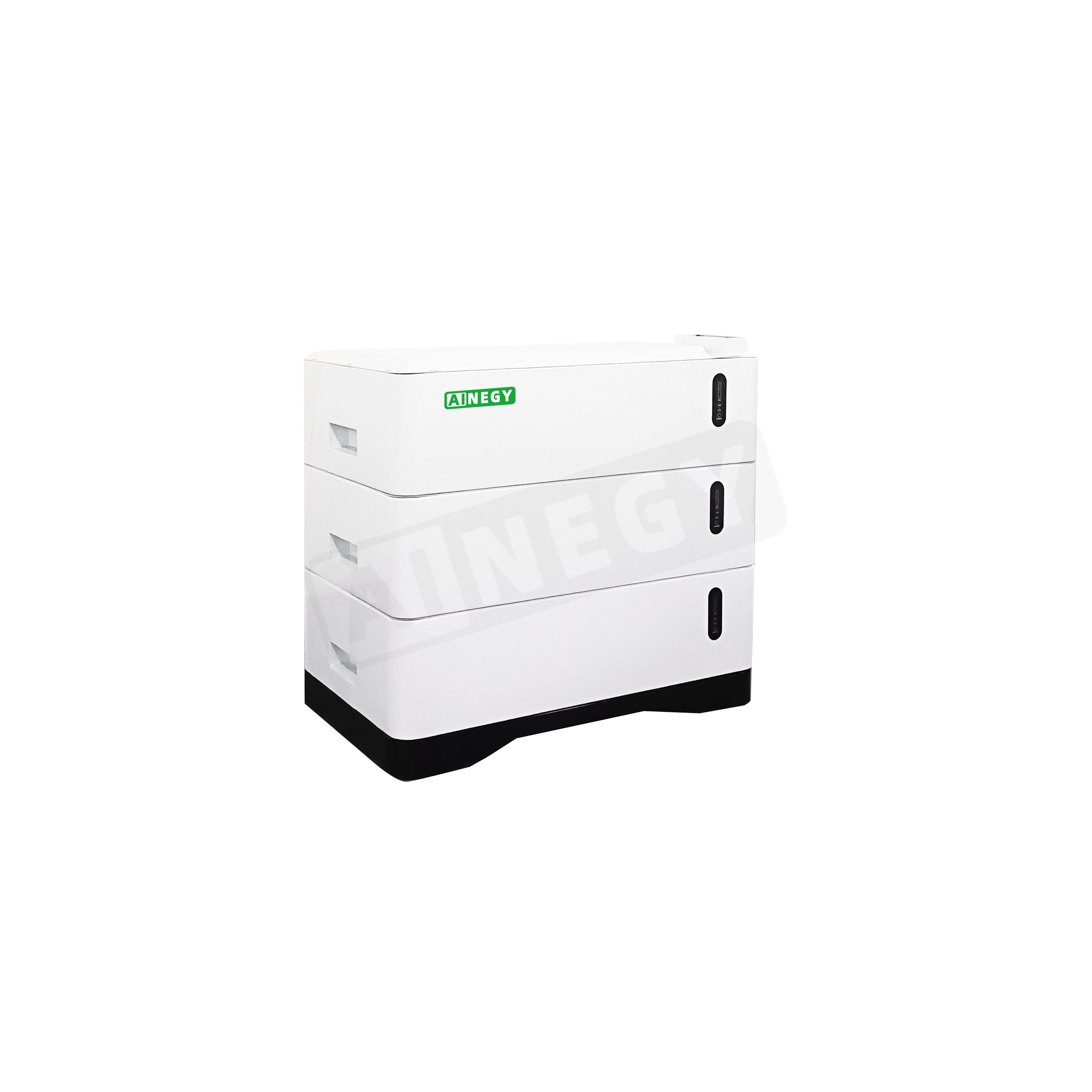

51.2V100Ah Stacked 5.12KWh LiFePO4 battery for AINEGY Residential energy storage
This is a standing solar lithium battery used for home energy storage. It is easy to install, plug and play,skillful manufacture and stylish in design, convenient for expansion, and has a long service life.
5.0
like
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Advantage
● Compatible with 20+ mainstream
● Passed IEC62619 certification
● Power expansion freely
● Easy installation
Product Parameters
| Model |
IYP-SM51100A-A1 |
IYP-SM51200A-A1 | IYP-SM51300A-A1 | IYP-SM51400A-A1 |
| Battery Type | LiFePO4 Battery | |||
| Battery Style | 51.2V100Ah | 51.2V200Ah | 51.2V300Ah | 51.2V400Ah |
| Battery Energy | 5.12KWh | 10.24KWh | 15KWh | 20KWh |
| Nominal Voltage | 51.2V | |||
| Battery Number | 1 | 2 | 3 | 4 |
| Rated Capacity | 100Ah | 200Ah | 300Ah | 400Ah |
| End-of-Charge-Voltage | 54.0V/58.0V | |||
| End-of-Discharge-Voltage | 39.0V/42.0V | |||
| Standard Charge Current | 100A | |||
| Standard Discharge Current | 100A | |||
| Max. Charge Current | 100A | |||
| Max. Discharge Current | 100A | |||
| Max.Peak Current | 200A | |||
| Charge/ Discharge Interface |
Quick plug Terminal (optional) |
|||
| Communication Interface |
RS485/CAN |
|||
| Shell Material/Color |
Metal/ White (color optional) |
|||
| Work Temperature Range |
Charge: 0°C-50°℃ Discharge: -15C-60°℃ |
|||
| Size(mm) | 585*360*150mm | 585*360*300mm | 585*360*450mm | 585*360*600mm |
| Weight(kg) | 42kg (about) | 84kg (about) | 126kg (about) | 170kg (about) |
product details
51.2V100Ah
51 (52)
51 (53)
System working principle diagram
Q&A
1
What certificates for your products you have?
IEC, UL, CE, CEI, RoHS, UN38.3, MSDS, FCC, PSE, VDE, Dangerous Package Certificate, etc.
2
For your Battery, what brand inverter they can be compatible?
Deye, Growatt, Goodwe, Sofar, Pylon, Victron, Solis, SMA, Luxpower, Voltronics, Megarevo, SRNE etc 20pcs above Global Famous Brand.
3
Which country you export already?
Japan, Austria, Germany, Poland, Italy, USA, South Africa, Nigeria, Myanmar, Philippines etc.
4
Do you support ODM? Can we get a customize logo and color on your products?
Yeah. We support OEM, besides we can offer ODM Research and Development.
5
How about your Aftersales?
We can support our core technical engineer team remote solve your troubles, remote solution video, and upgrade program.If no working products we can replacement.
