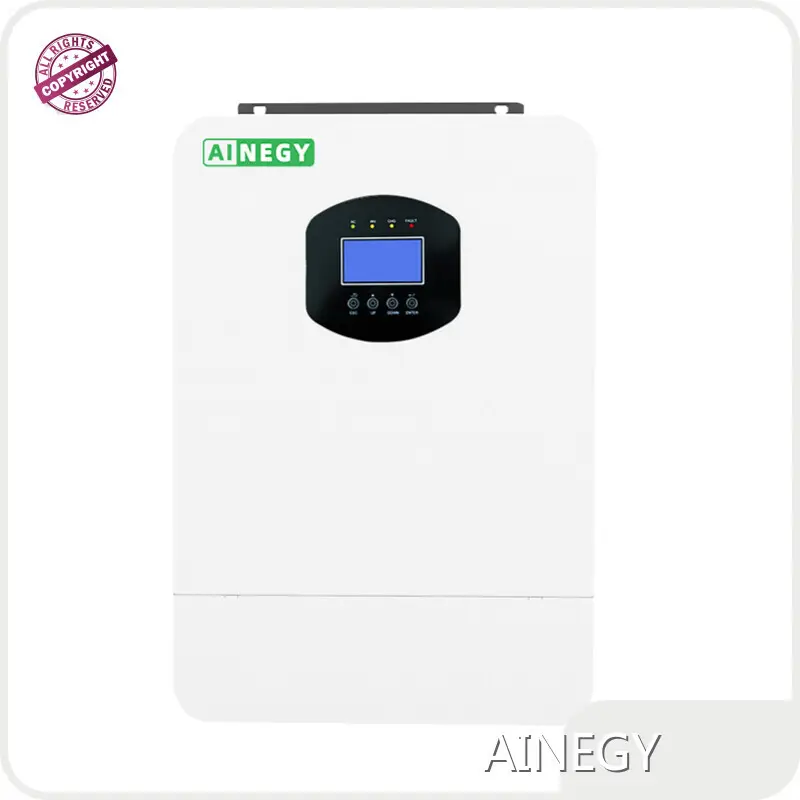

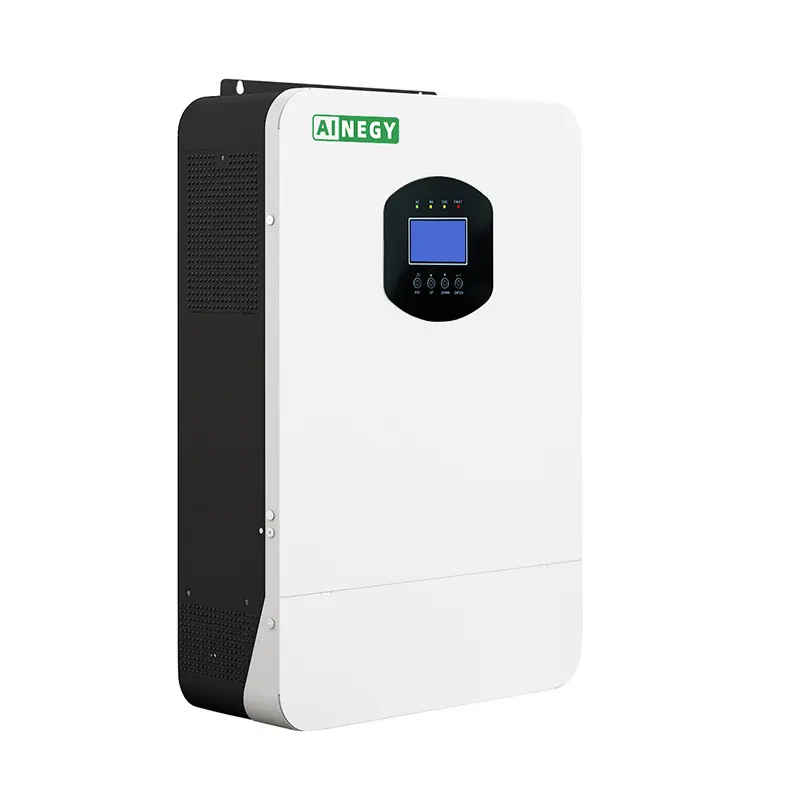

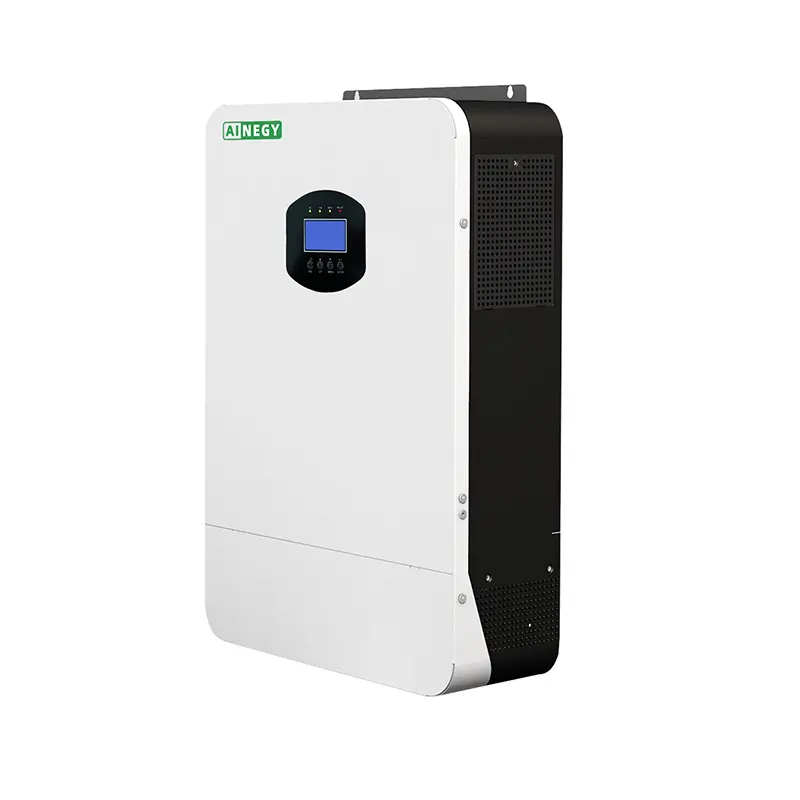

AINEGY Off Grid Inverter Manufacturer Upplier
Company Advantages
· off grid inverter manufacturer is of judgmatical design and reliable operation.
· The product keeps stable rise of sales in the market and is taking larger market share.
· This product has garnered significant attention and praise in the industry.
Prduct Advantage
● Support AC charge
● Support WiFi
● High voltage PV MPPT
● Fast charge current 100A
● Integrated UPS
● Max support 9 sets paralle
Product Parameters
| Model Name | AIN-5KF1-A1 |
| AC output | |
| Typical power output | 5000W |
| Typical voltage output | 230VAC+/-5% |
| Output frequency | 50/60Hz |
| Highest efficiency | 94% |
| Output wave | Pure sine wave |
| Conversion time | Typical 10mS, maximum 20mS |
| Battery | |
| Battery typical voltage | 48Vdc |
| Battery voltage range | 40~58Vdc |
| Battery type | Lithium battery/ Lead acid battery |
| PV | |
| Max. PV power | 5500W |
| Controller voltage range | 120~430Vdc |
| PV max. output voltage | 500Vdc |
| MPPT channels | 1 |
| PV max. charging current | 100A |
| AC input | |
| AC input voltage | 230Vac |
| AC input voltage range | 185~264Vac |
| AC input frequency | 50/60Hz adaptive |
| Others | |
| Max. number of parallels | 6 |
| Waterproof | IP21 |
| Working temperature range | —10~50℃ |
| Storage temperature range | —10~60℃ |
| Humidity range | 5% to 95% Relative Humidity (Non-condensing) |
| Size/mm | 335*125*480 |
| Weight/kg | 12 |
product details
System working principle diagram
Q&A
Company Features
· As an effective off grid inverter manufacturer exporter, AINEGY has distribute its products to many countries and areas.
· Our strong research strength is the assurance of the high-quality off grid inverter manufacturer. AINEGY is very strong in R&D. The technical power is Shenzhen Ainegy Technology Co., Ltd.'s base of development.
· Shenzhen Ainegy Technology Co., Ltd. will continue to offer high quality off grid inverter manufacturer and professional service. Call!
Application of the Product
Our off grid inverter manufacturer is widely used in various scenarios.
Guided by the actual needs of customers, AINEGY provides customers with comprehensive, perfect and high-quality solutions based on the interests of customers.
