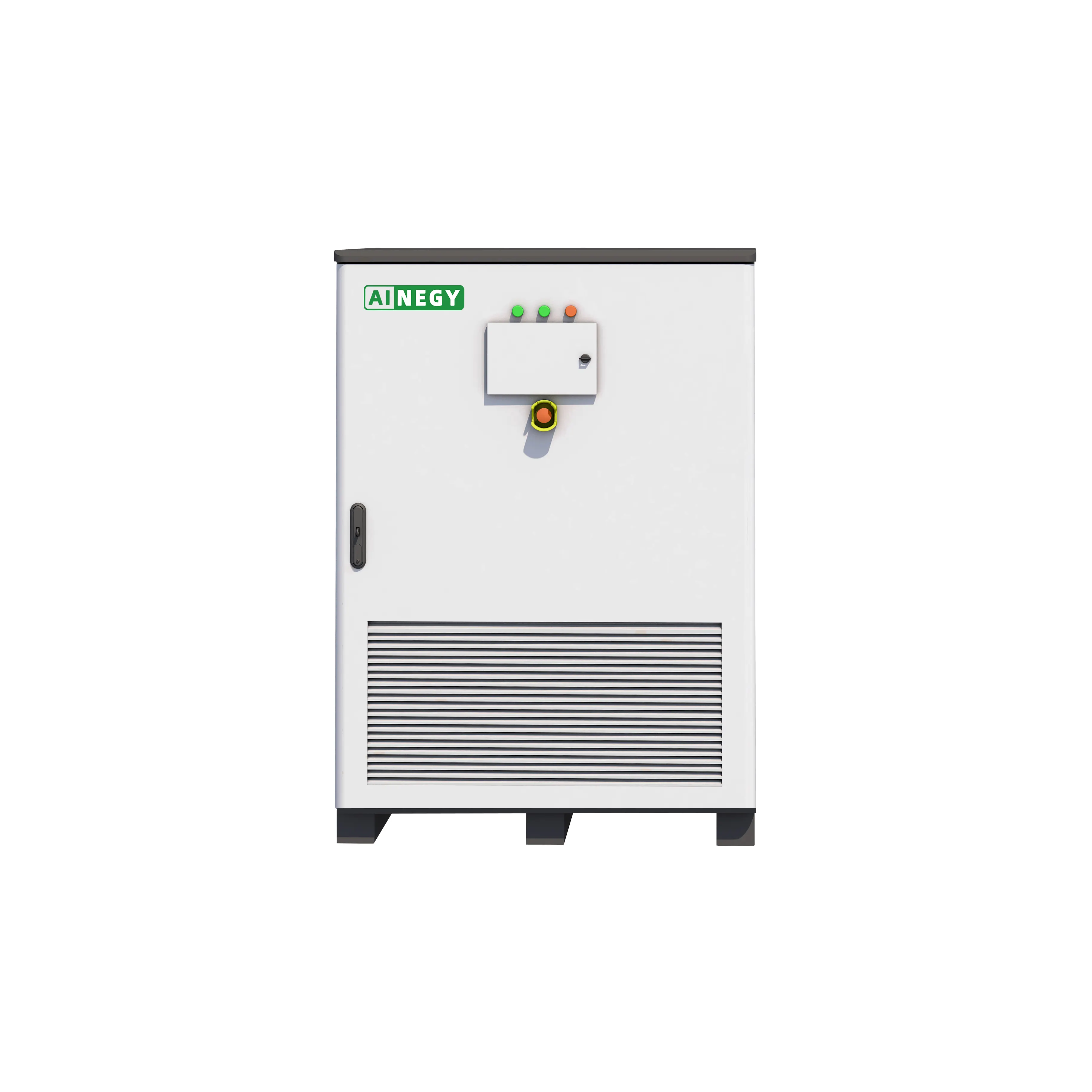

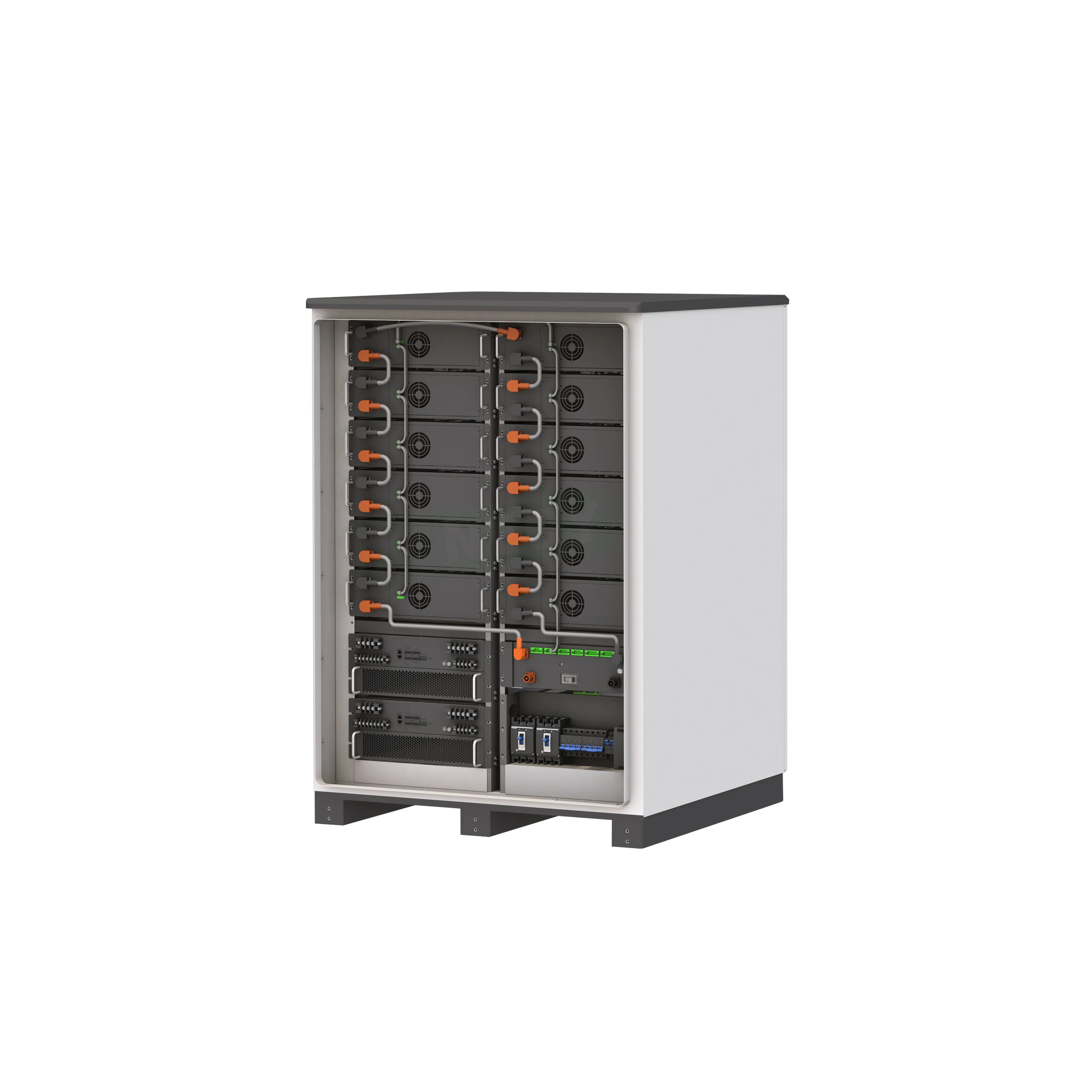

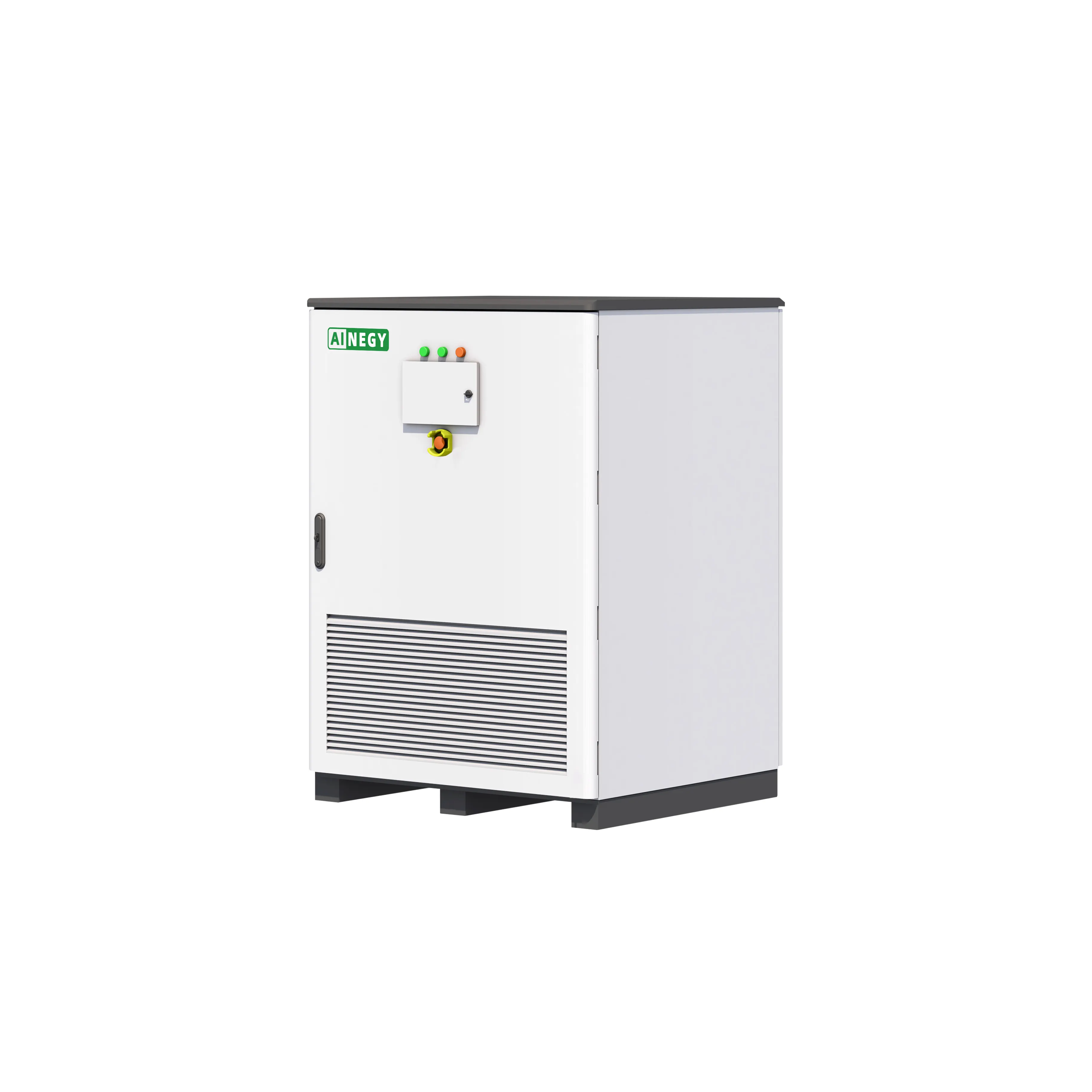

DurableESS Cabinet
Product details of the ESS Cabinet
Product Information
The design of AINEGY ESS Cabinet helps create individual highlights. It has been rigorously tested for quality and performance. Shenzhen Ainegy Technology Co., Ltd. has achieved a business policy that to grow from small to large in ESS Cabinet field.
Prduct Advantage
● Integrated PV, energy storage, inverter and UPS All-In-One
● Integrated BMS/PCS/EMS
● Integrated multi-level fire protection system
● IP54 waterproof
● 15 Levels of protection
● Support On Grid and Off Grid
Product Parameters
| Model Name | AIN-100KWH-50KH3M-HP1 |
| Battery | |
| Battery Type | LiFePO4 |
| Rated Energy | 100KWh |
| Nominal Voltage | 512V |
| Rated Capacity | 200Ah |
| Standard Charge Current | 75A |
| Max. Charge Current | 125V |
| Max. Discharge Current | 150A |
| Cooling Method | Air-Conditioner |
| PV | |
| Max. Power | 70KW |
| Max. PV Voltage | 850Vdc |
| MPPT Voltage Range | 200~820Vdc |
| Max. PV Current | 30A+30A+30A+30A |
| Quantity of MPPT Channel | 4 |
| AC (On-grid) | |
| Rated Power | 50KW |
| THDi | <3% |
| AC Voltage | 400Vdc |
| AC Model | L1/L2/L3/N/PE |
| Rated Frequency | 50Hz/60Hz |
| AC (Off-grid) | |
| Rated Power | 50KW |
| AC Voltage | 400Vac |
| AC Voltage Range | 320~460Vac |
| AC Model | L1/L2/L3/N/PE |
| Rated Frequency | 50Hz/60Hz |
| Max. AC Current | 72A |
| Switching time | <20ms |
| General Parameter | |
| Communication type | RS485/WiFi |
| IP Grade | IP54 |
| Fire Protection System | Aerosol |
| Operating temperature | —10~55℃ |
| Storage temperature | 25~60℃ |
| Humidity range | 5~95% |
| Altitude | <3000m |
| PCS cooling method | Intelligent air cooling |
| Size/mm | 1100*950*1450 |
| Weight/kg | 1200 (about) |
product details
System working principle diagram
Q&A
Company Advantage
• AINEGY was founded in After the exploration and development for years, we are the leading company in the industry because of the large scale and strong power.
• AINEGY's Power Wall,All in One Ess,Brick Type LiFePo4 Battery,Standing type LiFePo4 Battery,Cabinet Type LiFePo4 Battery,Charger&Inverter,12V/24V LiFePO4 Battery,Forklift LiFePO4 Battery,Household Energy Storage Power Battery,Lithium Battery,BMS,Inverter are sold well in the domestic market. They are also favored by many foreign customers.
• With good location advantages, the open and easy traffic serves as the foundation for AINEGY's development.
If you are interested in our products, please feel free to contact us.
