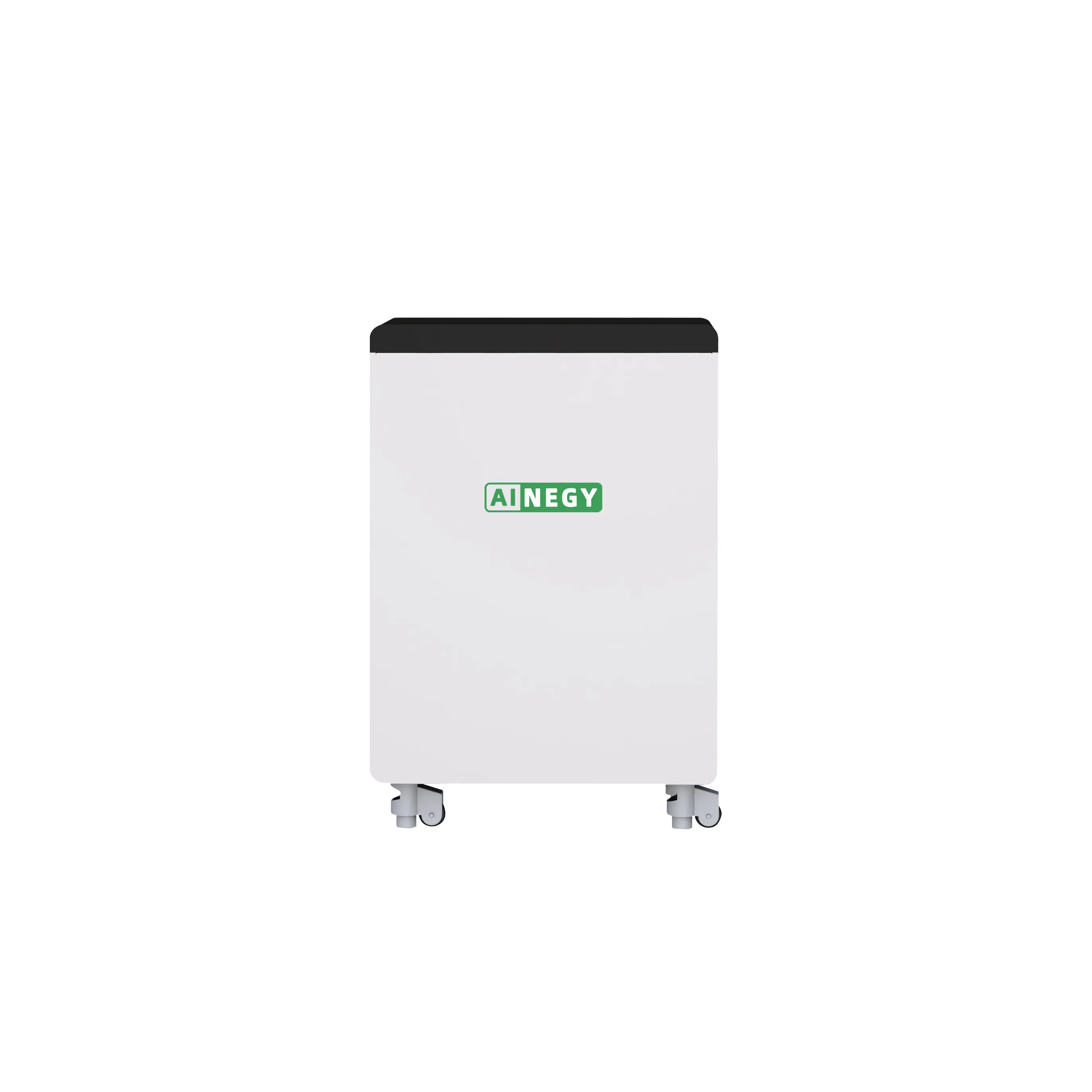

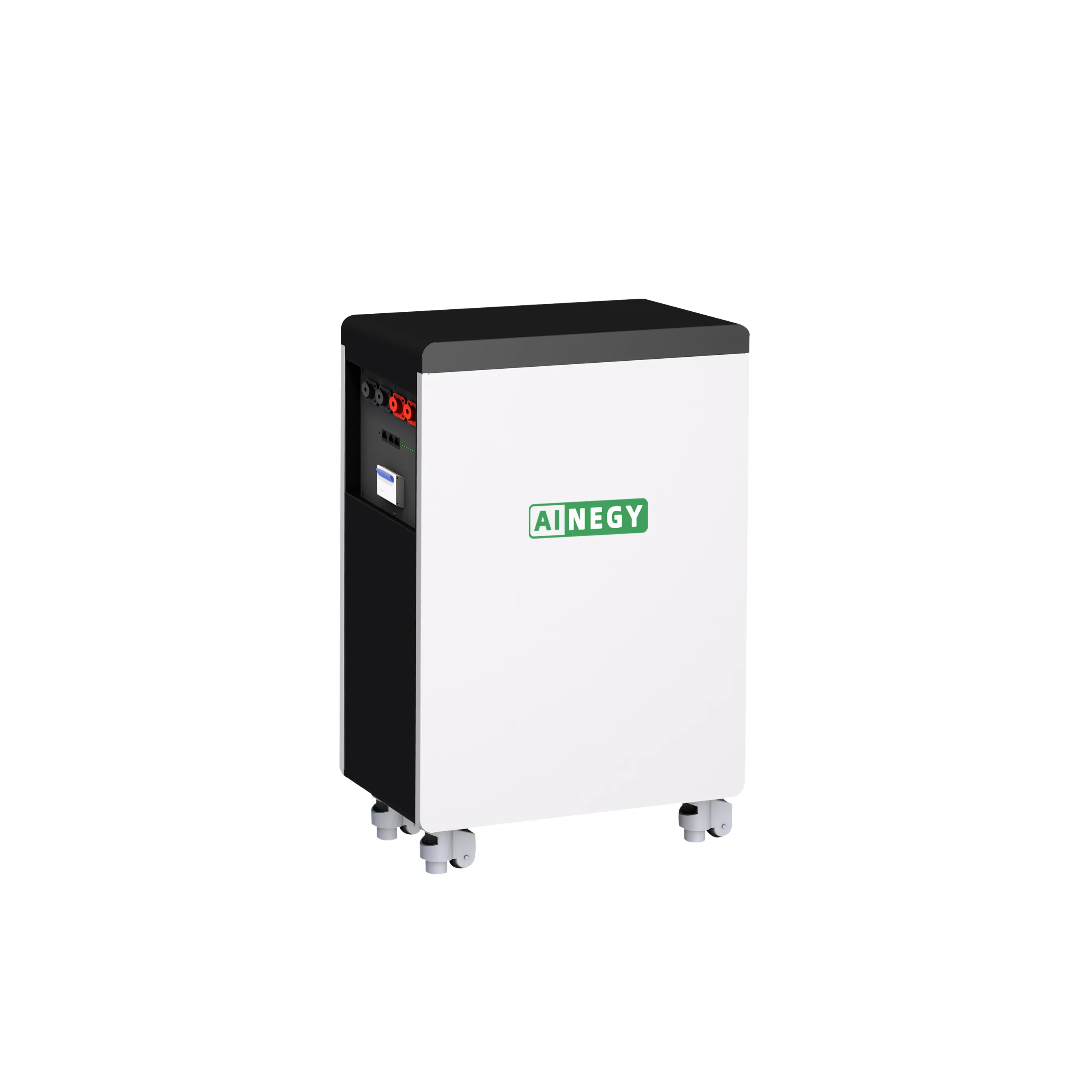

For Home Use Large Scale Lithium Battery Storage by AINEGY
Product details of the large scale lithium battery storage
Product Information
The materials of AINEGY large scale lithium battery storage are of the highest quality as they have been strictly examined according to our high standard and set the industry standard. As per quality, this product is strictly tested by professional persons. Our world famous designers can provide remarkable designs for large scale lithium battery storage.
Prduct Advantage
● Drive 10KW inverter
● Touch screen display
● Super large capacity
● Long cycle life
● Communication protocol customization
● Easy to move
Product Parameters
| Model Name | AIN-14.3KWH-P1 |
| Nominal Voltage | 51.2V |
| Rated Capacity | 280Ah |
| End-of-Charge Voltage | 58.0V |
| End-of-discharge Voltage | 42.0V |
| Standard Charge Current | 100A |
| Max. Charge Current | 200A |
| Standard Discharge Current | 100A |
| Max. Discharge Current | 200A |
| Max. Peak Current | 300A |
| Communication | RS485/CAN |
| Charge/Discharge Interface | M8 Terminal |
| Communication Interface | RJ45 |
| Shell Material/Color | Metal/ White (color optional) |
| Size(mm) | 490*255*720mm |
| Weight(Kg) | 119 |
| Work Temperature Range | Charge： 0℃-50℃Discharge：-15℃-60℃ |
product details
System working principle diagram
Q&A
Company Advantage
• Up to now, our products have a wide market and excellent reputation in the country. Besides, they are exported to Europe, America, Southeast Asia, the Middle East and other regions and firmly occupy some foreign market share.
• AINEGY's initial intention is to provide service that can bring customers comfortable and secure experience.
• Our company enjoys a superior geographical position and convenient transportation, which becomes a solid foundation for the subsequent sustainable development.
• AINEGY was built in During the development for years, we have accumulated rich production and management experience.
Dear customer, if you have any questions about AINEGY's products, please call us. Your contact, visit and cooperation are welcome.
