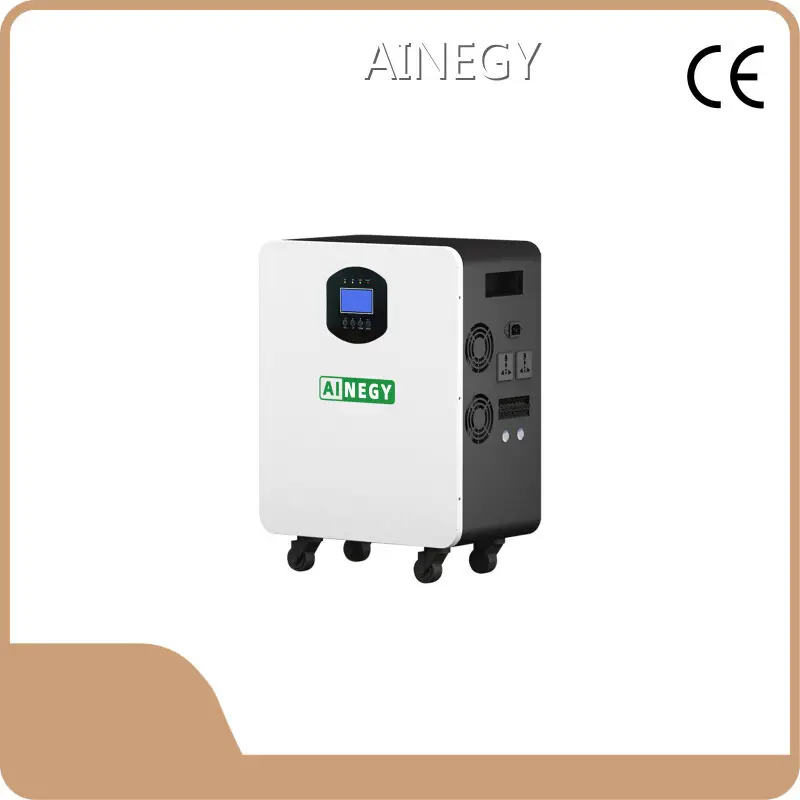

For Home Use Lithium Power Storage by AINEGY
Product details of the lithium power storage
Product Introduction
AINEGY lithium power storage benefits from a higher level of attention of detail. The product is of high quality and reliable. There is an increasing number of customers choosing the product, showcasing the wider application potential.
Prduct Advantage
● All-In-One (Battery & Inverter)
● Support UPS function
● High integration and Easy installation
● Long cycle life
● AC charge +PV charge
● Connecting to socket to supply power
Product Parameters
| Model Name | AIN-2.56KWH-3KW |
| Battery Parameter | Battery Type | LiFePO4 |
| Rated Capacity | 2.56KWh | |
| Nominal Voltage | 25.6V | |
| Voltage Range | 22V~28V | |
| AC Parameter(On Grid) | Rated Power | 3000W |
| AC Voltage | 230Vac | |
| AC Frequency | 50Hz/60Hz | |
| AC Wave Form | Pure Sine Wave | |
| AC Parameter(Off Grid) | Rated Power | 3KW |
| AC Voltage | 230Vac | |
| AC Frequency | 50Hz/60Hz | |
| System Parameter | Cooling Method | Aluminum heat sink |
| Protection Level | IP20 | |
| Installation Method | Wall Mount or Against Wall Standing | |
| Size(mm) | 370*225*510 | |
| Weight(Kg) | 32 | |
| Work Environment | Work Temperature | -10~50℃ |
| Communication | Communication Port | RS485/WiFi |
product details
System working principle diagram
Q&A
Company Feature
• Our company has a high-quality management team, a professional operation team, and a caring service team. All this provides a good guarantee for our production, sales and service.
• Currently, our sales network has spread all over the country's major provinces and cities and autonomous regions. In addition, our company's products are also favored by overseas customers, and exported to Southeast Asia, Africa, Australia and other countries and regions.
• Our company wholeheartedly provides each user with most intimate and most reasonable service.
Leave your contact information, and AINEGY will provide you with details of customized products.
