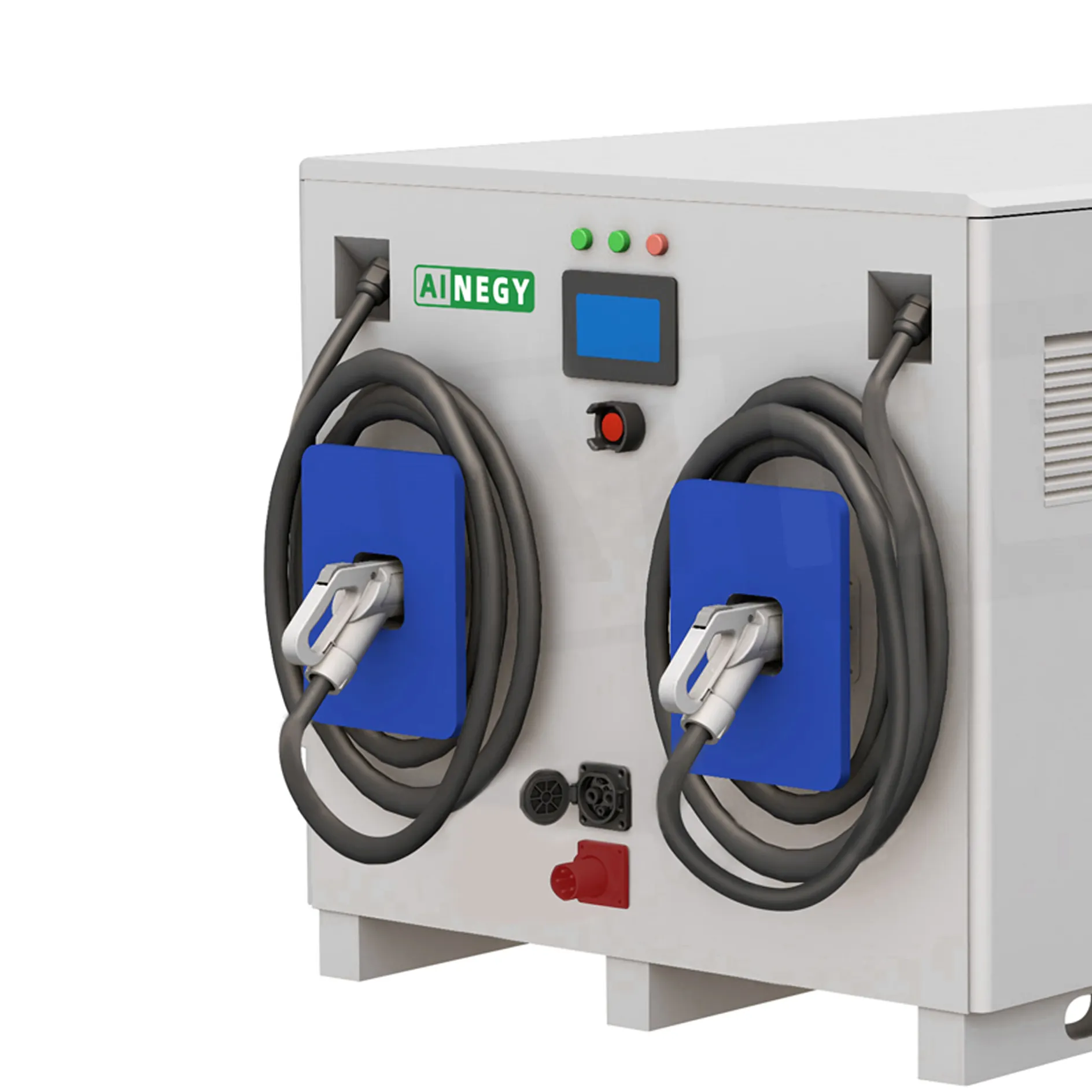

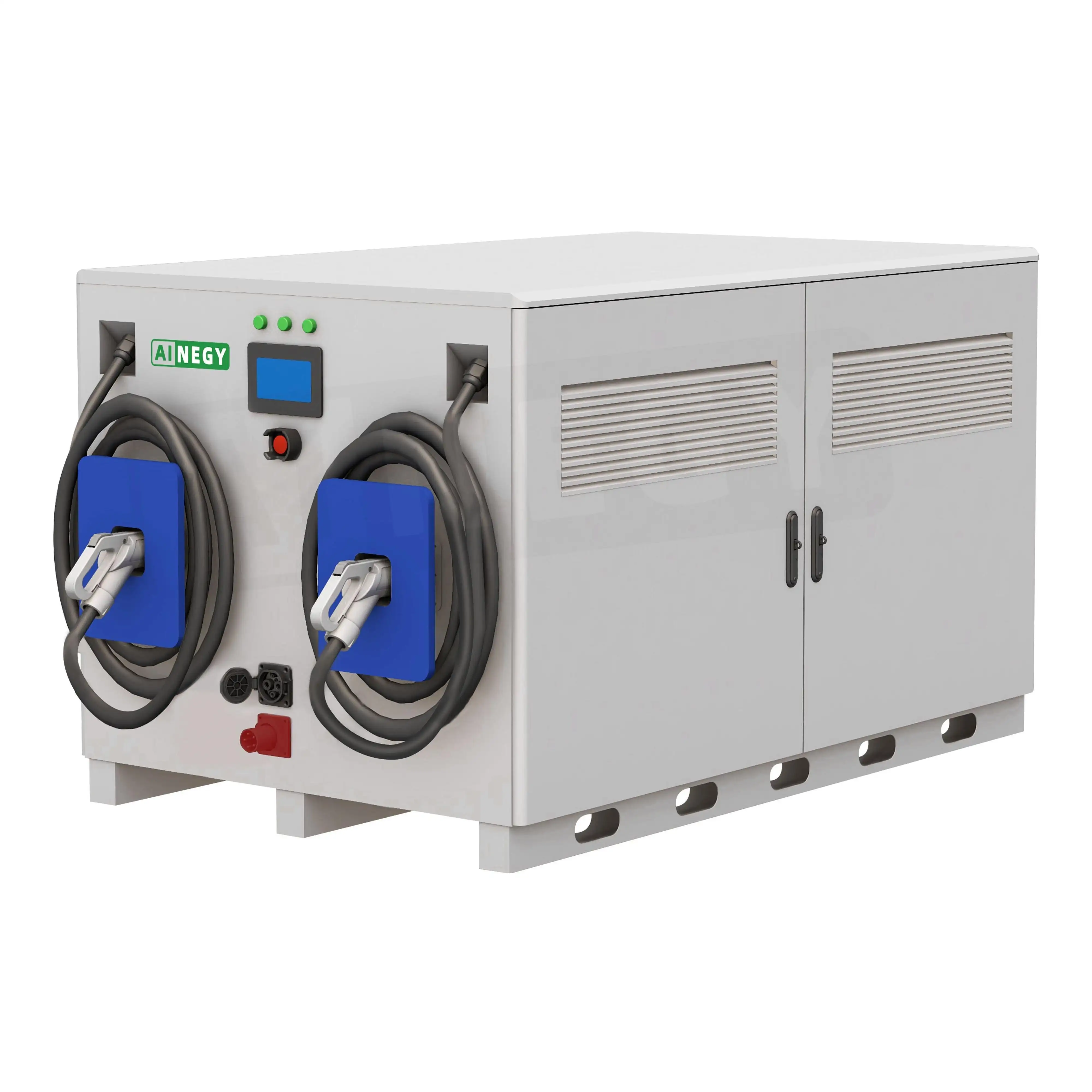

Large Scale Lithium Battery Storage - - AINEGY
Company Advantages
· Innovative design concept: From appearance to construction, AINEGY large scale lithium battery storage is designed by our professional designers. They discuss to each other to ensure that each design has the innovative characteristics of industrial standard.
· The product has passed the tests on various quality parameters conducted by our experienced quality control team.
· Shenzhen Ainegy Technology Co., Ltd. has a good market outlook.
Prduct Advantage
● GBT or CCS1/CCS2/CHAdeMO
● Integrated LiFePO4 Battery/ PV/Charger Module
● Battery, PV and Charger by DC Coupling
● Long cycle life
● Support IP54
● Solar/ Storage/ Charger with DC Coupling
Product Parameters
| Model Name | AIN-172KWH-120KWM-CD2-HA1 |
| Battery | Battery Type | LiFePO4 |
| Rated energy | 172KWh | |
| Cooling method | Air-Conditioner | |
| Fast Charger | Gun type | GBT/CCS1/CCS2/CHAdeMO |
| Max. charger power | 120KW | |
| Charger voltage range | 200~1000Vdc | |
| Charger current | 0~250A | |
| Operation mode | Single-Alone/OCPP1.6J | |
| Quantity of Gun | 2 | |
| Gun wire length | 8m | |
| DC Recharger | Max. recharge power | 60KW |
| Socket type | GBT/CCS1/CCS2/CHAdeMO | |
| AC Recharger | AC type | 3-phase(L1/L2/L3/N/PE) |
| Max. recharge power | 30KW | |
| PV Recharger | Max. power | 60KW |
| Max. PV voltage | 850Vdc | |
| MPPT voltage range | 200~820Vdc | |
| Quantity of MPPT Channel | 4 | |
| AC OUT (Off-grid) | Rated power | 60KW |
| AC voltage | 400Vac/230Vac (3-phase) | |
| Rated frequency | 50Hz/60Hz | |
| Max. AC current | 80A | |
| General parameter | Communication type | RS485/WiFi |
| Protection grade | IP54 | |
| Fire protection system | Aerosol | |
| Operating temperature | -15~50℃ | |
| Humidity range | 5%~95% | |
| Altitude | < 3000m | |
| PCS cooling method | Intelligent air cooling | |
| Dimensions(W*D*H) | 1800*1650*1050mm | |
| Weight | 1550kg(about) |
product details
System working principle diagram
Q&A
Company Features
· Shenzhen Ainegy Technology Co., Ltd. has been devoted to manufacturing large scale lithium battery storage since established. Our excellent manufacturing capability is now recognized by the world.
· There is a professional team equipped to be charge of designing and upgrading large scale lithium battery storage. Under our strict supervision of QC department, AINEGY-made large scale lithium battery storage has won high recommendation from customers. Professional team are equipped to be responsible for the quality of large scale lithium battery storage.
· AINEGY will continue to provide superior large scale lithium battery storage. Ask online!
Application of the Product
The large scale lithium battery storage developed and produced by our company is widely applied to many industries and fields, and it can fully meet the diversified needs of customers.
AINEGY insists on providing customers with one-stop and complete solution from the customer's perspective.
