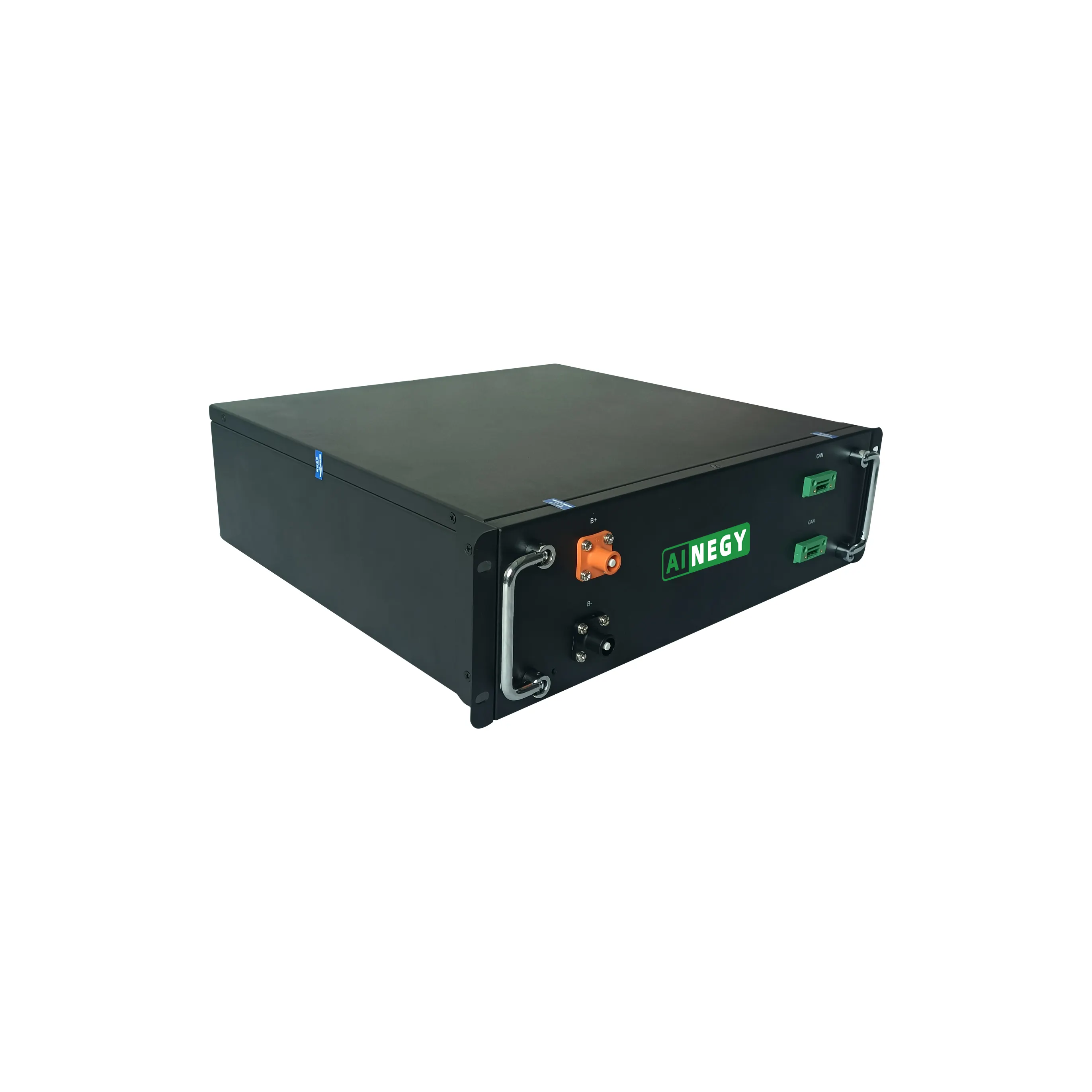

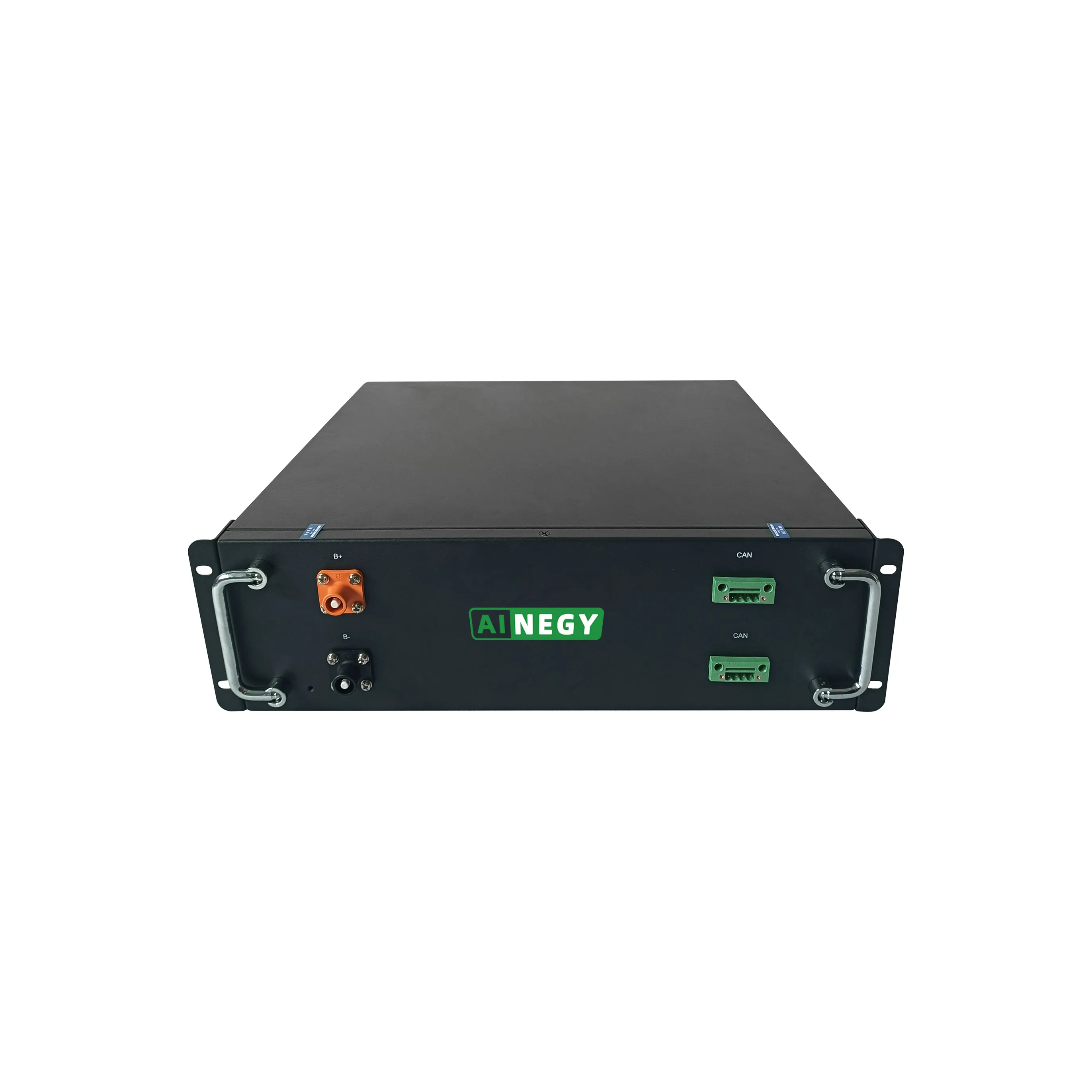

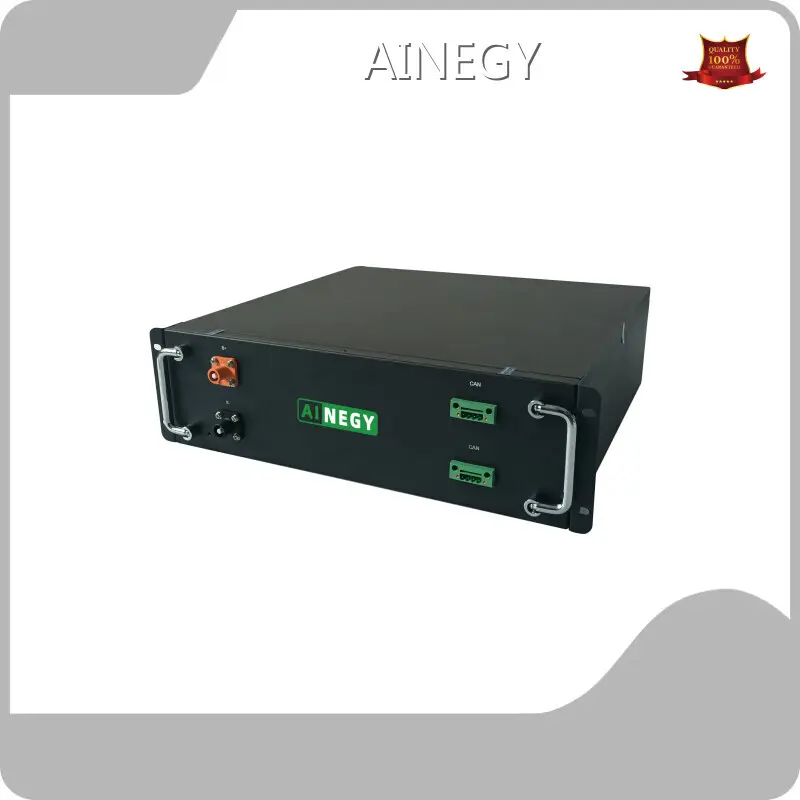

Large Scale Lithium Battery Storage - for Home Use - AINEGY
Prduct Advantage
● 15 layers of protection
● BMS independently developed
● Rated capacity:100Ah
● Support 15 in parallel
● Compatible with 20+ inverters
● Support bracket stack installation
Product Parameters
| Model Name | AIN-RM51100A-HA1 |
| Battery Style | 51.2V100Ah |
| Nominal Voltage | 51.2V |
| Rated Capacity | 100Ah |
| End-of-charge Voltage | 58.0V |
| End-of-dischargeVoltage | 42.0V |
| Standard Charge Current | 50A |
| Max. Charge Current | 50A/100A |
| Standard Discharge Current | 50A |
| Max. Discharge Current | 100A |
| Max. Peak Current | 150A |
| Communication | RS485/ CAN |
| Charge/ Discharge Interface | Waterproof connector |
| Communication Interface | RJ45 |
| Shell Material/Color | Metal/ Black (color optional) |
| Size | 442*420*133mm/3U |
| Weight | 40/ 43kg (about) |
| Work Temperature Range | Charge： 0℃-50℃Discharge：-15℃-60℃ |
product details
System working principle diagram
Q&A
Company Advantages
· AINEGY large scale lithium battery storage is manufactured under the guidance of skilled professionals using optimum grade material.
· The high quality of this product is guaranteed with the support of a sound quality assurance system.
· Shenzhen Ainegy Technology Co., Ltd. has built a comprehensive, professional and thoughtful large scale lithium battery storage solutions for its customers.
Company Features
· By virtue of years of engagement in manufacturing large scale lithium battery storage, Shenzhen Ainegy Technology Co., Ltd. finally steps into the list of stronger in this industry.
· With increasing market channels and sales volumes, we have set up a market survey team. The team aims to gain insight into customers preferences based on different regions and countries, so as to enable us to establish accurate market target plans.
· In future, Shenzhen Ainegy Technology Co., Ltd. will continue to expand strenuously the large scale lithium battery storage services. Contact!
Application of the Product
AINEGY's large scale lithium battery storage can meet the different needs of customers.
In addition to high-quality products, AINEGY also provides effective solutions based on the actual conditions and the needs of different customers.
