Lithium Battery Energy Storage System for Home Use Factory
Company Advantages
· The production of AINEGY lithium battery energy storage system conforms with the norms and guidelines defined by the market.
· The QC team guarantees the quality of the product under the supervision of technicians.
· Shenzhen Ainegy Technology Co., Ltd. provides formidable strengths to its customers.
Prduct Advantage

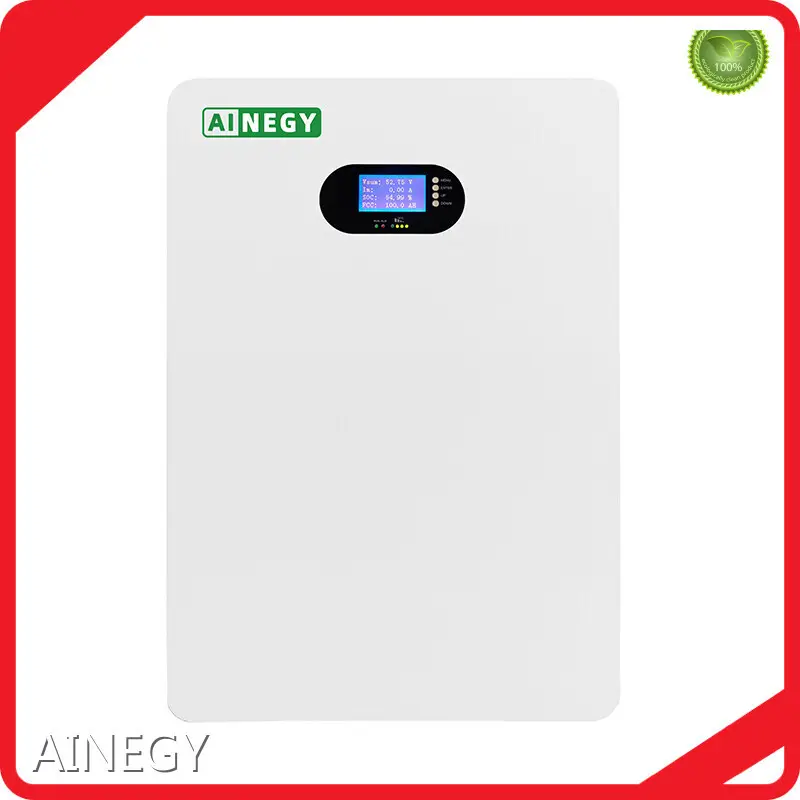

● 5kwh Wall-mount/Floor-mount
● Ultra slim design
● Compatible with 20+ inverters
● Automotive-grade security architecture BMS
● Support 15 in parallel
● Intelligence LCD can choose inverter
Product Parameters
| Model Name | AIN-WM51100A-A1 |
| Battery Style | 51.2V100Ah |
| Energy | 5.12KWh |
| Nominal Voltage | 51.2V |
| Rated Capacity | 100Ah |
| End-of-charge Voltage | 54.0V/58.0V |
| End-of-discharge Voltage | 39.0/42.0V |
| Standard Charge Current | 50A |
| Max. Charge Current | 100A |
| Standard Discharge Current | 100A |
| Max. Discharge Current | 100A |
| Max. Peak Current | 200A |
| Charge/ Discharge Interface | M8 Terminal |
| Communication Interface | RS485/ CAN |
| Shell Material/ Color | Metal/ (White + Black) |
| Size | 590*410*145mm |
| Weight | 43/45Kg |
| Work Temperature Range | Charge：0℃-50℃Discharge：-15℃-60℃ |
product details
System working principle diagram
Q&A
Company Features
· Shenzhen Ainegy Technology Co., Ltd. is a modern enterprise dedicated to the design and manufacture of lithium battery energy storage system.
· With high technology equipped, AINEGY is capable for producing popular lithium battery energy storage system.
· We always think from customer’s point of view and strive to create value for customers.
Application of the Product
The lithium battery energy storage system developed by our company can be applied in different fields.
In addition to high-quality products, AINEGY also provides effective solutions based on the actual conditions and the needs of different customers.
Enterprise Advantages
AINEGY has a professional team with excellent business skills and strong comprehensive quality. We strive to achieve rapid development by giving full play to each member's potential.
Based on customer demand, AINEGY is committed to providing considerate services for customers.
Our company insists on the business philosophy of 'law-abiding and sustainable management' and the quality policy of 'pursuit of perfection'. We are committed to providing customers with the highest quality products.
During the development for years, AINEGY has accumulated rich production experience and has built a complete industrial chain.
Our company has established sales outlets in major cities in China. Our products are also exported to Europe, America, Southeast Asia and other regions.
