Lithium Battery Energy Storage System From China

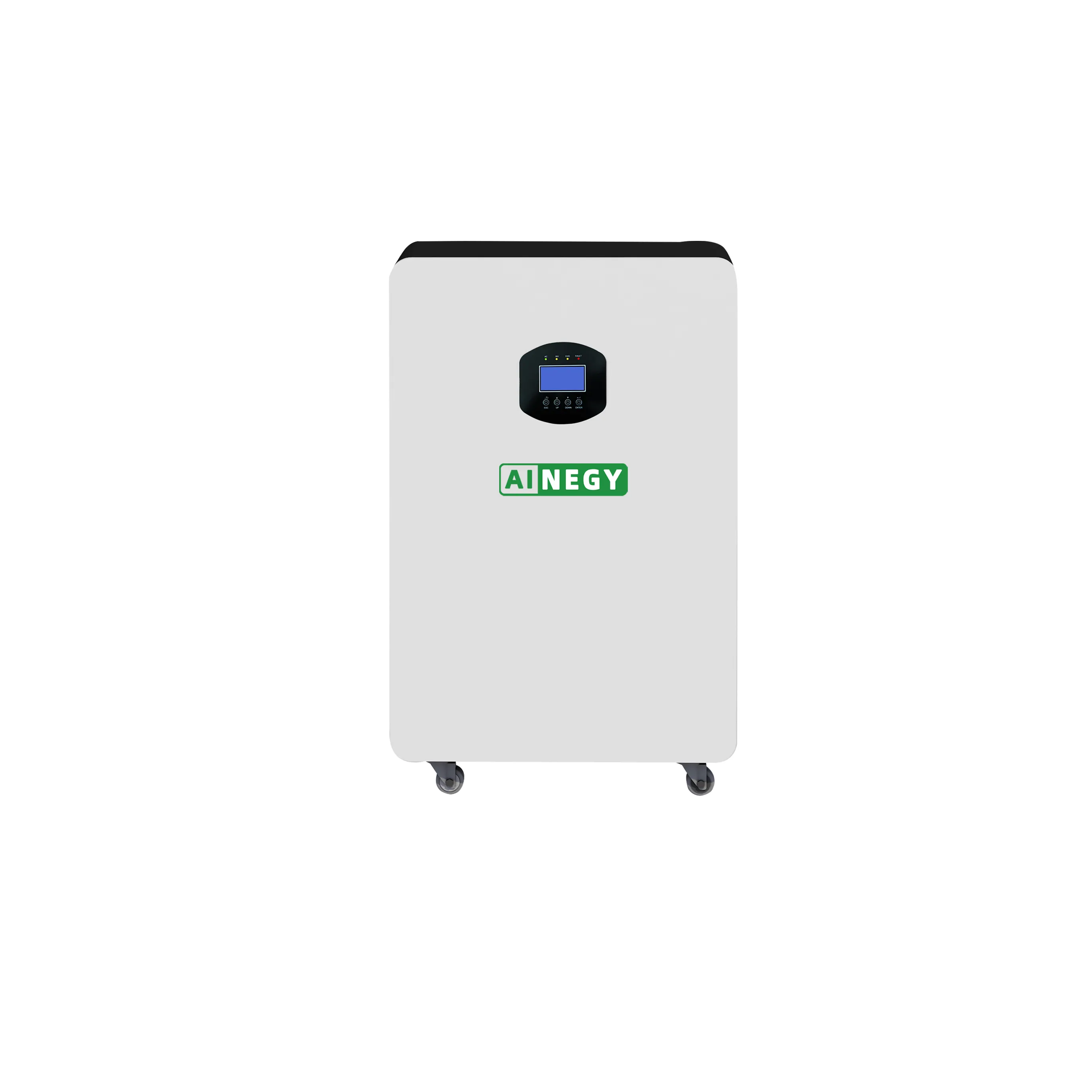

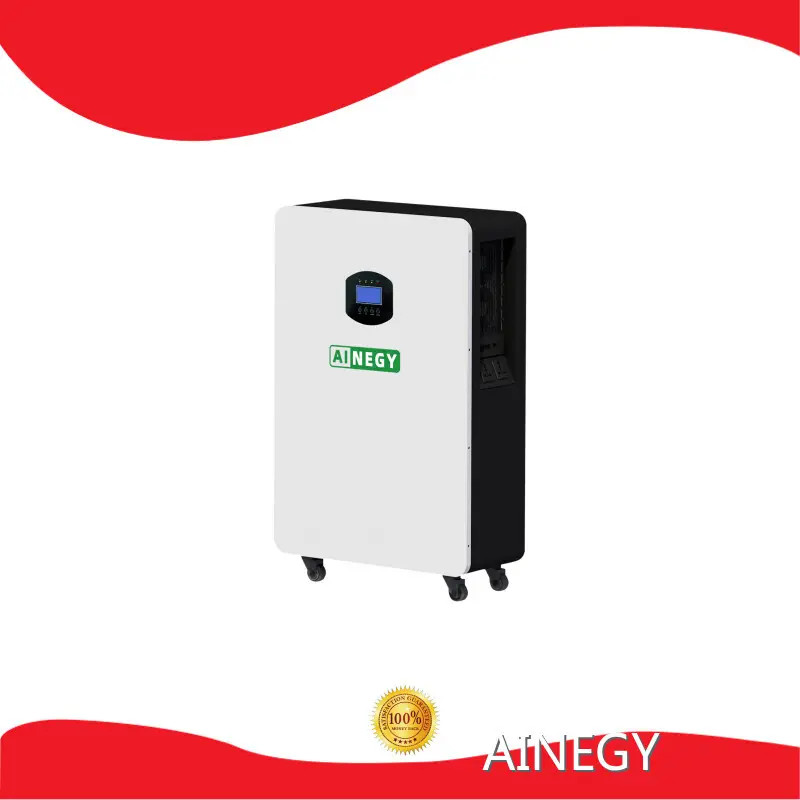

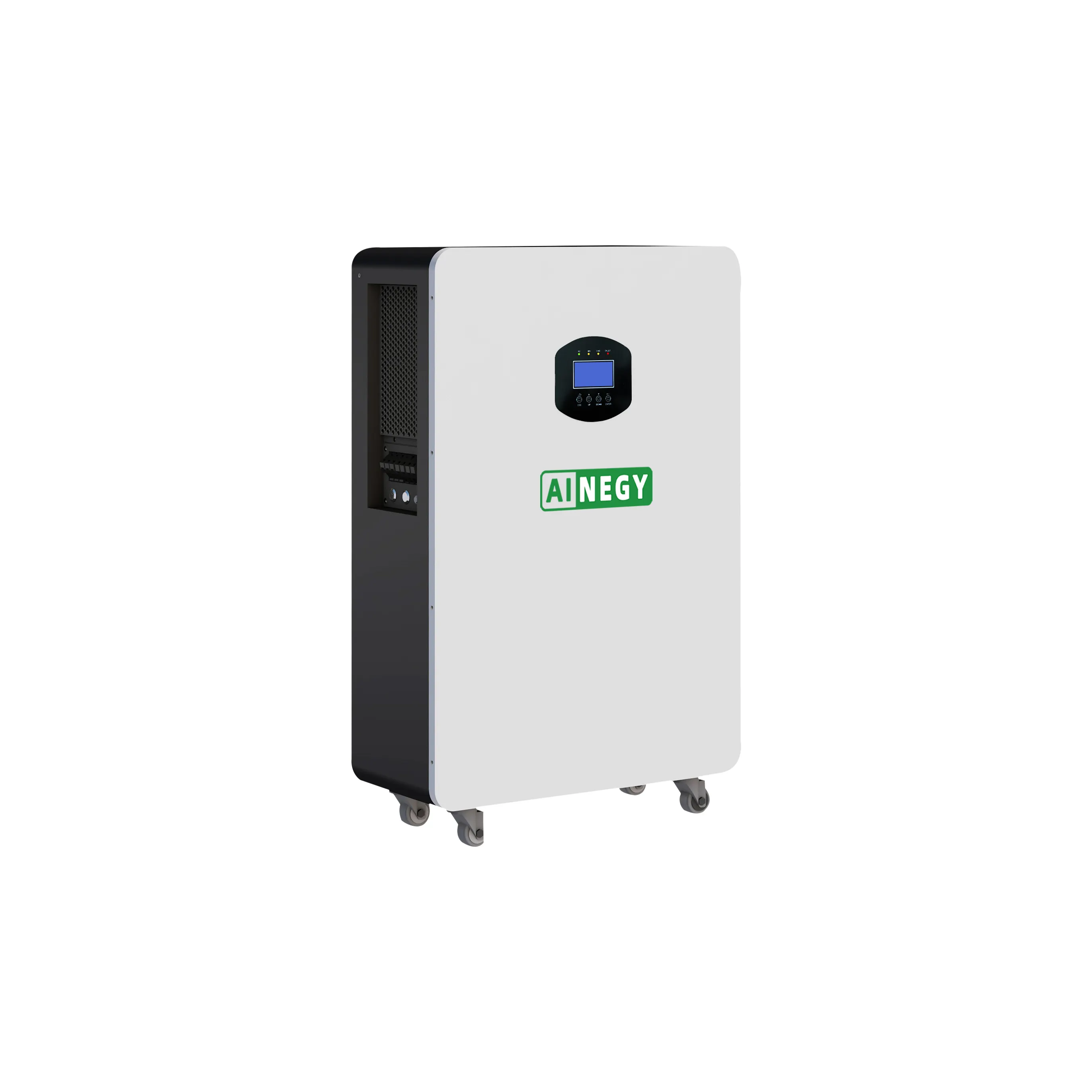

Product details of the lithium battery energy storage system
Product Information
To manufacture AINEGY lithium battery energy storage system, the quality-approved raw materials is used into the production. Quality is key to AINEGY, so quality control is strictly implemented. Advanced technology and first-class equipment allow Shenzhen Ainegy Technology Co., Ltd. to be confident that we can guarantee prompt delivery and guarantee quality.
Prduct Advantage
● All-In-One(Battery & Inverter)
● Support UPS function
● Support IP20
● Long cycle life
● High integration and Easy installation
● AC charge + PV charge
Product Parameters
| Model Name | AIN-10KWH-5KW |
| Battery Parameter | Battery Type | LiFePO4 |
| Rated Capacity | 200Ah | |
| Nominal Voltage | 51.2V | |
| Voltage Range | 42V~57V | |
| AC Parameter(On Grid) | Rated Power | 5500W |
| AC Voltage | 230Vac | |
| AC Frequency | 50Hz/60Hz | |
| AC Wave Form | Pure Sine Wave | |
| AC Parameter(Off Grid) | Rated Power | 10KW |
| AC Voltage | 230Vac | |
| AC Frequency | 50Hz/60Hz | |
| System Parameter | Cooling Method | Aluminum heat sink |
| Protection Level | IP20 | |
| Installation Method | Wall Mount or Against Wall Standing | |
| Size(mm) | 740*485*270 | |
| Weight(Kg) | 92 | |
| Work Environment | Work Temperature | -15~50℃ |
| Communication | Communication Port | RS485/WiFi |
product details
System working principle diagram
Q&A
Company Advantage
• Set up in AINEGY has established a good reputation and wide popularity in the industry through the development for years.
• With a comprehensive service guarantee system, AINEGY is committed to providing sound, efficient and professional services. We strive to achieve win-win cooperation with customers.
• With excellent working environment and sound incentive mechanism, our company has attracted a group of professional, high-level and capable talents to form a team with strong technical R&D strength and comprehensive strength, which provides a good guarantee for our healthy development.
For bulk purchase of the products, please contact us.
