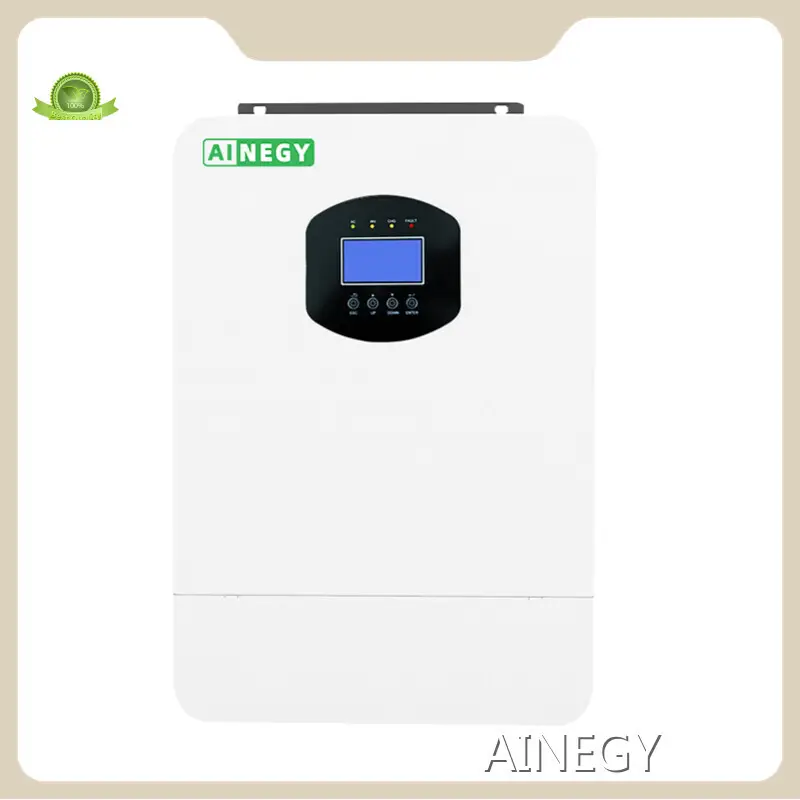

Professional Off Grid Solar Inverter with Battery From China
Product details of the off grid solar inverter with battery
Quick Overview
The design style of off grid solar inverter with battery expresses the details thoroughly. The QC team take serious attitude to the control of its quality. off grid solar inverter with battery can be applied to different industries, fields and scenes. Equipped with advanced facilities, AINEGY focuses more on the quality assurance.
Product Information
Compared with similar products, our off grid solar inverter with battery's core competitiveness is mainly reflected in the following aspects.
Prduct Advantage
● Support AC charge
● Support WiFi
● High voltage PV MPPT
● Fast charge current 100A
● Integrated UPS
● Max support 9 sets paralle
Product Parameters
| Model Name | AIN-5KF1-A1 |
| AC output | |
| Typical power output | 5000W |
| Typical voltage output | 230VAC+/-5% |
| Output frequency | 50/60Hz |
| Highest efficiency | 94% |
| Output wave | Pure sine wave |
| Conversion time | Typical 10mS, maximum 20mS |
| Battery | |
| Battery typical voltage | 48Vdc |
| Battery voltage range | 40~58Vdc |
| Battery type | Lithium battery/ Lead acid battery |
| PV | |
| Max. PV power | 5500W |
| Controller voltage range | 120~430Vdc |
| PV max. output voltage | 500Vdc |
| MPPT channels | 1 |
| PV max. charging current | 100A |
| AC input | |
| AC input voltage | 230Vac |
| AC input voltage range | 185~264Vac |
| AC input frequency | 50/60Hz adaptive |
| Others | |
| Max. number of parallels | 6 |
| Waterproof | IP21 |
| Working temperature range | —10~50℃ |
| Storage temperature range | —10~60℃ |
| Humidity range | 5% to 95% Relative Humidity (Non-condensing) |
| Size/mm | 335*125*480 |
| Weight/kg | 12 |
product details
System working principle diagram
Q&A
Company Advantages
Shenzhen Ainegy Technology Co., Ltd. is an excellent brand in the off grid solar inverter with battery industry. Shenzhen Ainegy Technology Co., Ltd. has a strong R&D team and top class management force. Our company bears social responsibility. In recent years, we have been driving the development and use of sustainable raw materials above-average.
We are sincerely looking forward to establishing a long-term cooperation with all customers!
