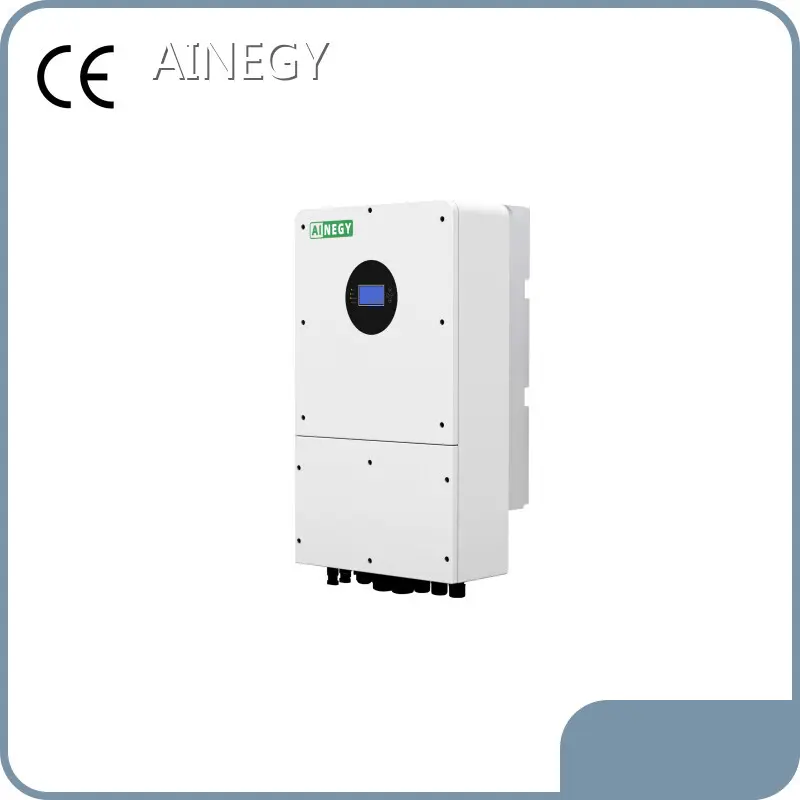

Solar Inverter Supplier with Custom Services
Product details of the solar inverter supplier
Product Overview
AINEGY solar inverter supplier is made-up by trained personnel using optimal-grade raw material as per set industry principles & guidelines. The highest international quality standards are applied in its production. It is said that the product has good economic benefits and has broad market prospects.
Product Introduction
Next, AINEGY will show you the details of solar inverter supplier.
Prduct Advantage
● IP65 waterproof
● 2 channels HV PV MPPT controller
● Long cycle life
● Support RS485 and WiFi
● On-grid, off-grid and UPS
● Max support 6 sets parallel
Product Parameters
| Model Name | AIN-6KH1-B1 |
| PV | Max PV Power | 7.8KW |
| Max PV Voltage | 500Vdc | |
| MPPT Voltage Range | 150~430Vdc | |
| Max PV Current | 20+20 | |
| MPPT channels | 2 | |
| AC Output | Rated Power | 6KW |
| Max Power | 6.6KW | |
| AC Voltage | 230Vac | |
| Max AC current | 40A | |
| Norminal frequency | 50/60Hz | |
| Battery | Battery type | Li-ion battery |
| Battery voltage range | 40-60Vdc | |
| Max charge/discharge current | 125A/125A | |
| BMS communication | RS485/CAN | |
| General parameters | Max.efficiency | 97.5% |
| MPPT efficiency | 99% | |
| Work temparature | -30~55℃ | |
| Cooling method | Smart Cooling | |
| Weight(Kg) | 21Kg | |
| Size | 460*260*540mm | |
| IP garde | IP65 | |
| Communication | WiFi |
product details
System working principle diagram
Q&A
Company Introduction
Located in Shenzhen Ainegy Technology Co., Ltd.(AINEGY) is a professional company. We are dedicated to the business of Power Wall,All in One Ess,Brick Type LiFePo4 Battery,Standing type LiFePo4 Battery,Cabinet Type LiFePo4 Battery,Charger&Inverter,12V/24V LiFePO4 Battery,Forklift LiFePO4 Battery,Household Energy Storage Power Battery,Lithium Battery,BMS,Inverter. AINEGY runs an excellent, complete and effective sales and technical system. We strive to provide efficient services covering from pre-sales, in-sales, and after-sales, so as to meet customers' needs. All walks of life are welcomed to visit and negotiate.
