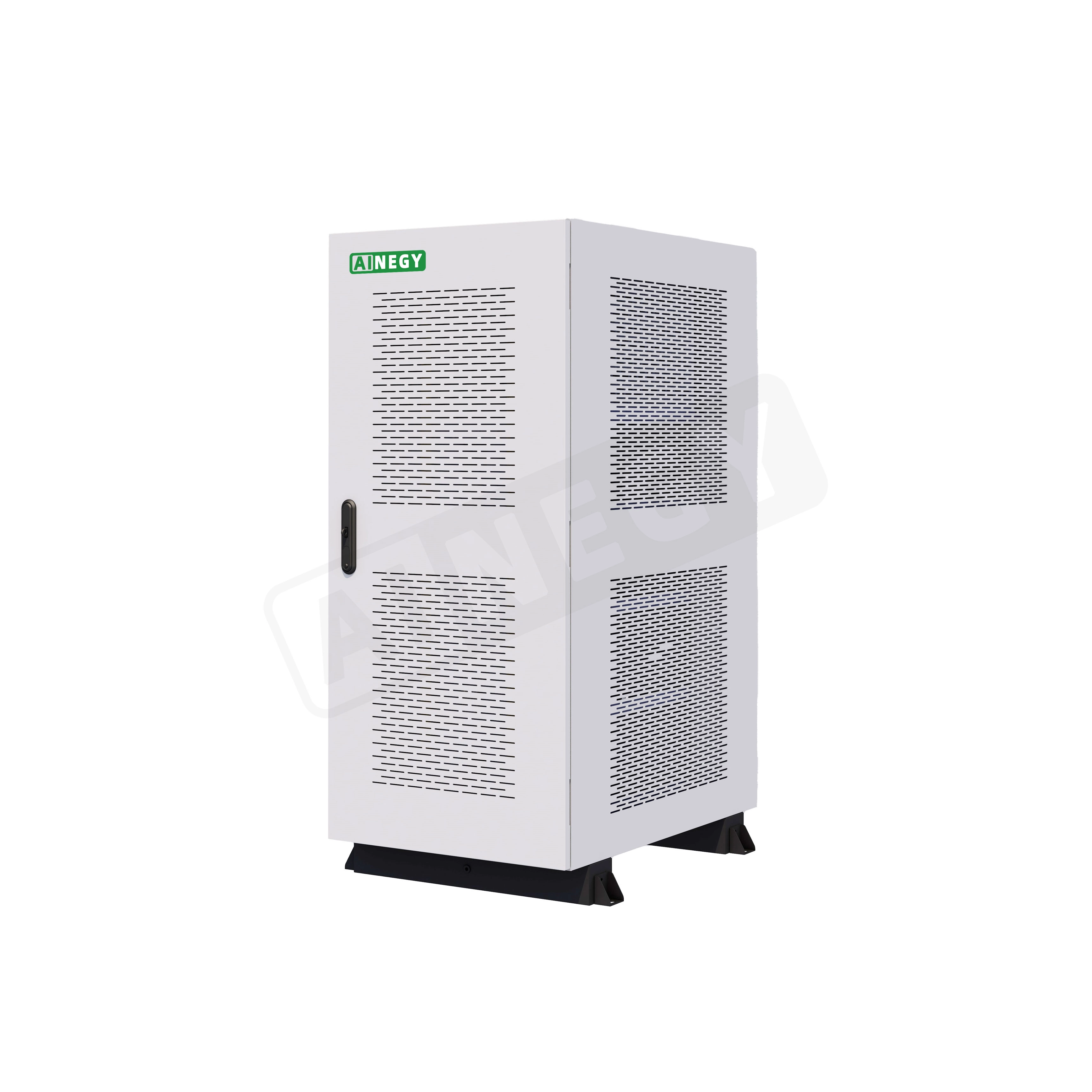

30KW/57KWh C&I LV BESS (IP20)
This 57kWh/30kW low-voltage AC/DC integrated cabinet utilizes Lithium Iron Phosphate (LFP) battery cells in a 48V/51.2V series configuration, supporting charging from both photovoltaic and grid sources. It enables multi-cabinet parallel expansion and features intelligent BMS/EMS management for cell-level monitoring, compatible with peak-valley pricing arbitrage, demand charge management, and backup power modes. Real-time data visualization is provided through a remote O&M platform, while its safety-focused design with IP20 protection makes it suitable for diverse applications including shopping malls, supermarkets, schools, and hospitals.
5.0
like
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Advantage
● Suport PV and grid charging
● 48V LiFePO4 Battery
● High reliability &high security
● Cost-effective
Product Parameters
| Model | 43KWh+30KW | 48KWh+30KW | 57KWh+30KW | 64KWh+30KW |
| Battery | ||||
| Battery Type | LiFePO4 | |||
| Rated Energy | 43KWh | 48KWh | 57KWh | 64KWh |
| Nominal Voltage | 51.2V | |||
| PV | ||||
| Max. Power | 33KW | |||
| Max. PV Voltage | 500Vdc | |||
| MPPT Voltage Range | 90~450Vdc | |||
| Max. PV Current | 22A/Channel | |||
| MPPT Channels | 6 | |||
| AC (On-grid) | ||||
| Rated Power | 30KW | |||
| AC Voltage | 400Vac/230Vac | |||
| Rated Frequency | 50Hz/60Hz | |||
| Max. AC Current | 45A | |||
| AC (Off-grid) | ||||
| Rated Power | 30KW | |||
| AC Voltage | 400Vac/230Vac | |||
| AC Frequency | 50Hz/60Hz | |||
| Max. AC Current | 45A | |||
| General Parameter | ||||
| Communication Type | RS485/WiFi | |||
| IP Grade | IP54 | |||
| Fire Protection System | Yes | |||
| OperatingTemperature | -10~55℃ | |||
| Humidity Range | 5%~95% | |||
| Altitude | < 2000m | |||
| Battery Cooling Method | FAN | |||
| PCS Cooling Method | Intelligent cooling | |||
| Dimensions(W*D*H) | 670*900*1560mm | 670*900*1560mm | 670*900*1560mm | 670*900*1560mm |
| Weight | 550kg(about) | 550kg(about) | 650kg(about) | 650kg((about)) |
product details
System working principle diagram
Q&A
1
What certificates for your products you have?
IEC, UL, CE, CEI, RoHS, UN38.3, MSDS, FCC, PSE, VDE, Dangerous Package Certificate, etc.
2
For your Battery, what brand inverter they can be compatible?
Deye, Growatt, Goodwe, Sofar, Pylon, Victron, Solis, SMA, Luxpower, Voltronics, Megarevo, SRNE etc 20pcs above Global Famous Brand.
3
Which country you export already?
Japan, Austria, Germany, Poland, Italy, USA, South Africa, Nigeria, Myanmar, Philippines etc.
4
Do you support ODM? Can we get a customize logo and color on your products?
Yeah. We support OEM, besides we can offer ODM Research and Development.
5
How about your Aftersales?
We can support our core technical engineer team remote solve your troubles, remote solution video, and upgrade program.If no working products we can replacement.
