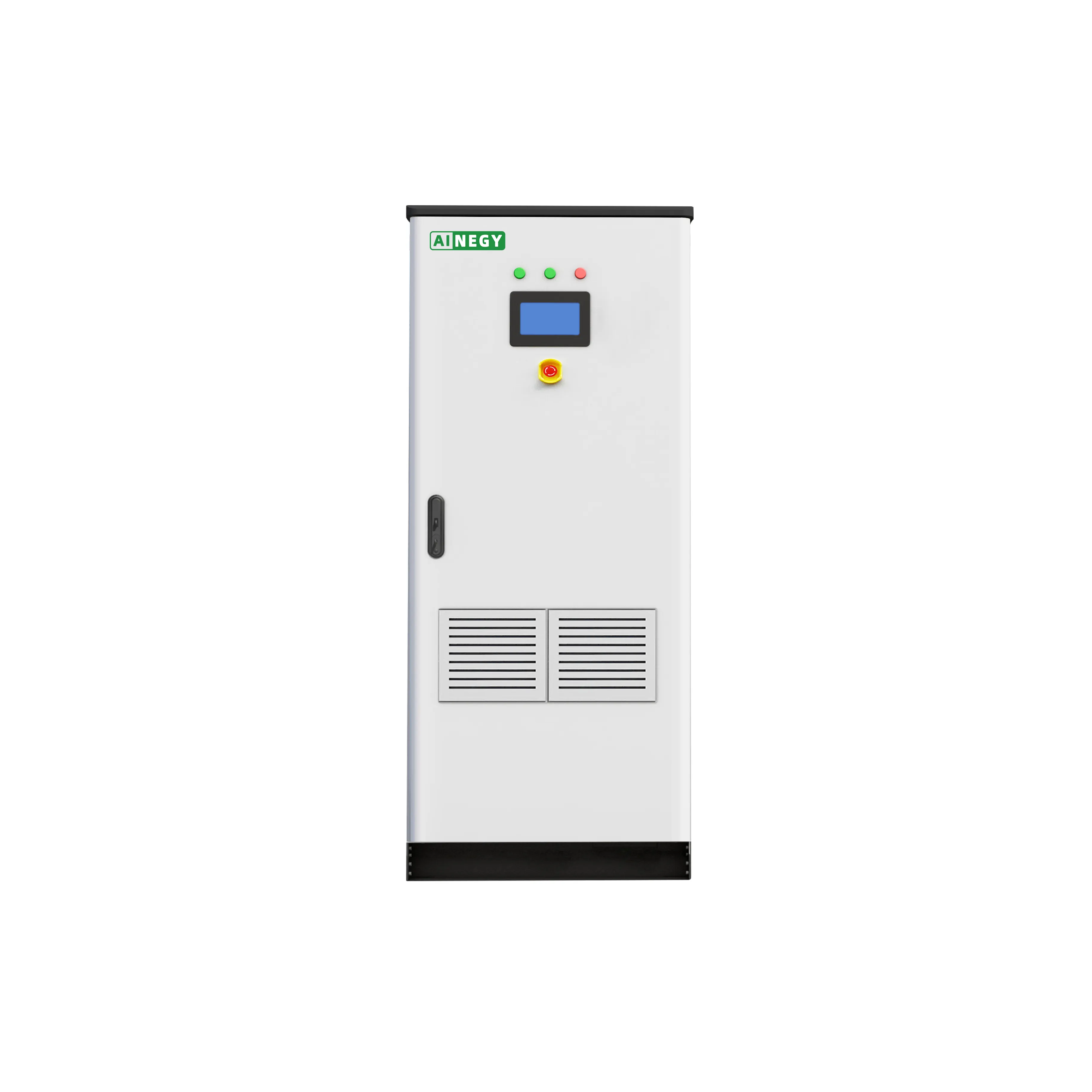

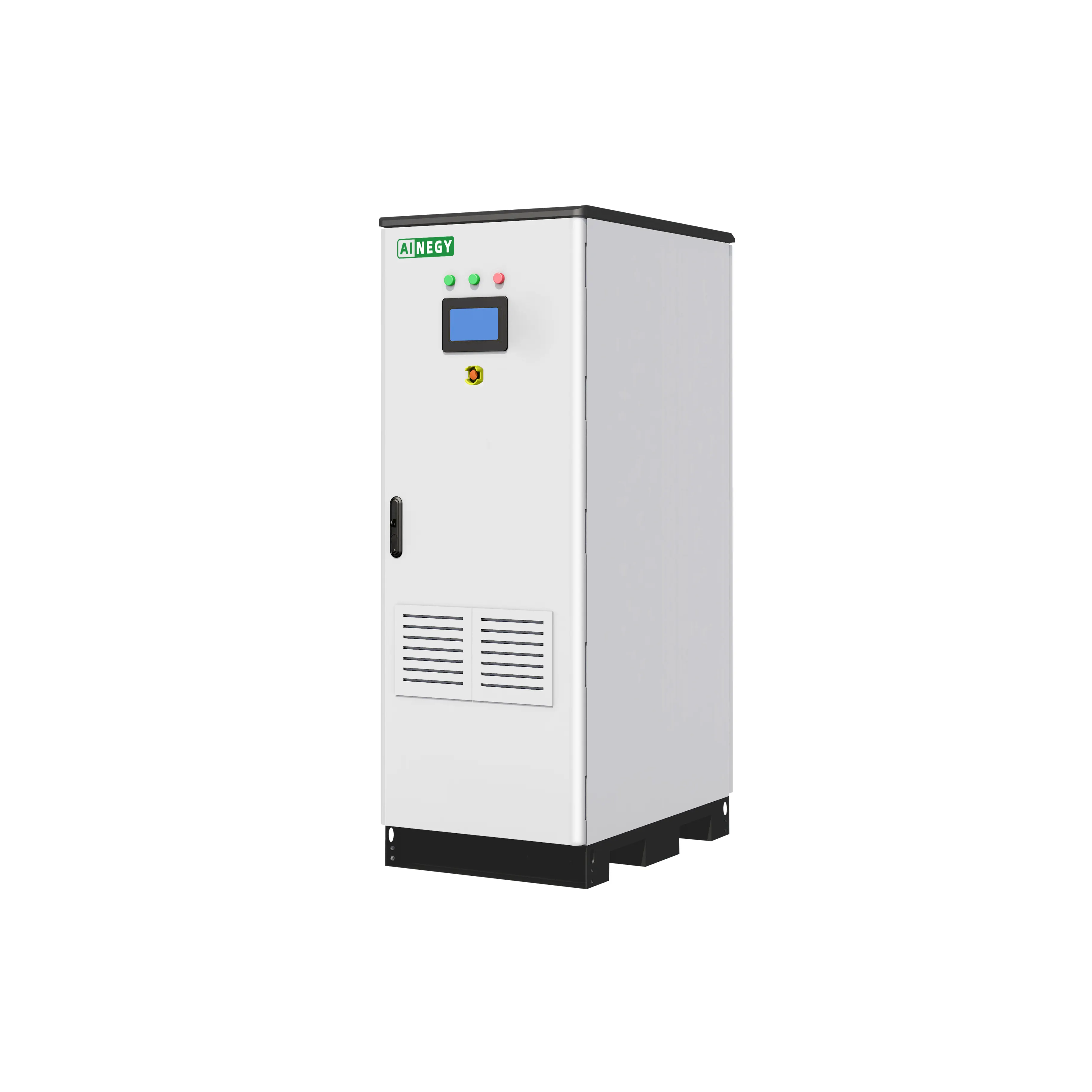

Energy Storage System Series
Prduct Advantage
● Integrated PV, energy storage, inverter and UPS All-In-One
● Integrated BMS/ PCS/ EMS
● Integrated multi-level fire protection system
● IP54 waterproof
● 15 Levels of protection
● Support On Grid and Off Grid
Product Parameters
| Model Name | AIN-50KWH-30KH3M-HP1 |
| Battery | |
| Battery type | LiFePO4 |
| Rated energy | 51KWh |
| Nominal voltage | 512V |
| Rated capacity | 100Ah |
| Max. work current | 100A |
| PV | |
| Max. power | 38KW |
| Max. PV voltage | 850Vdc |
| MPPT voltage range | 200~820Vdc |
| Max. PV current | 30A+30A |
| MPPT Channels | 2 |
| AC (On-grid) | |
| Rated power | 30KW |
| AC voltage | 400Vac/230Vac (L1/L2/L3/N/PE) |
| Rated frequency | 50Hz/60Hz |
| Max. AC current | 50A |
| Max. Parallel number | 30 |
| AC (Off-grid) | |
| Rated power | 30KW |
| AC voltage | 400Vac/230Vac (L1/L2/L3/N/PE) |
| Rated frequency | 50Hz/60Hz |
| Max. AC current | 43A |
| Switching time | < 20ms |
| Max. Parallel number | 10 |
| General parameter | |
| Communication type | RS485/WiFi |
| IP grade | IP54 |
| Fire protection system | Yes |
| Operating temperature | -10~55℃ |
| Humidity range | 5%~95% |
| Altitude | < 3000m |
| Battery cooling method | Air-Conditioner |
| PCS cooling method | Intelligent cooling |
| Dimensions(W*D*H) | 660*900*1850mm |
| Weight | 600kg(about) |

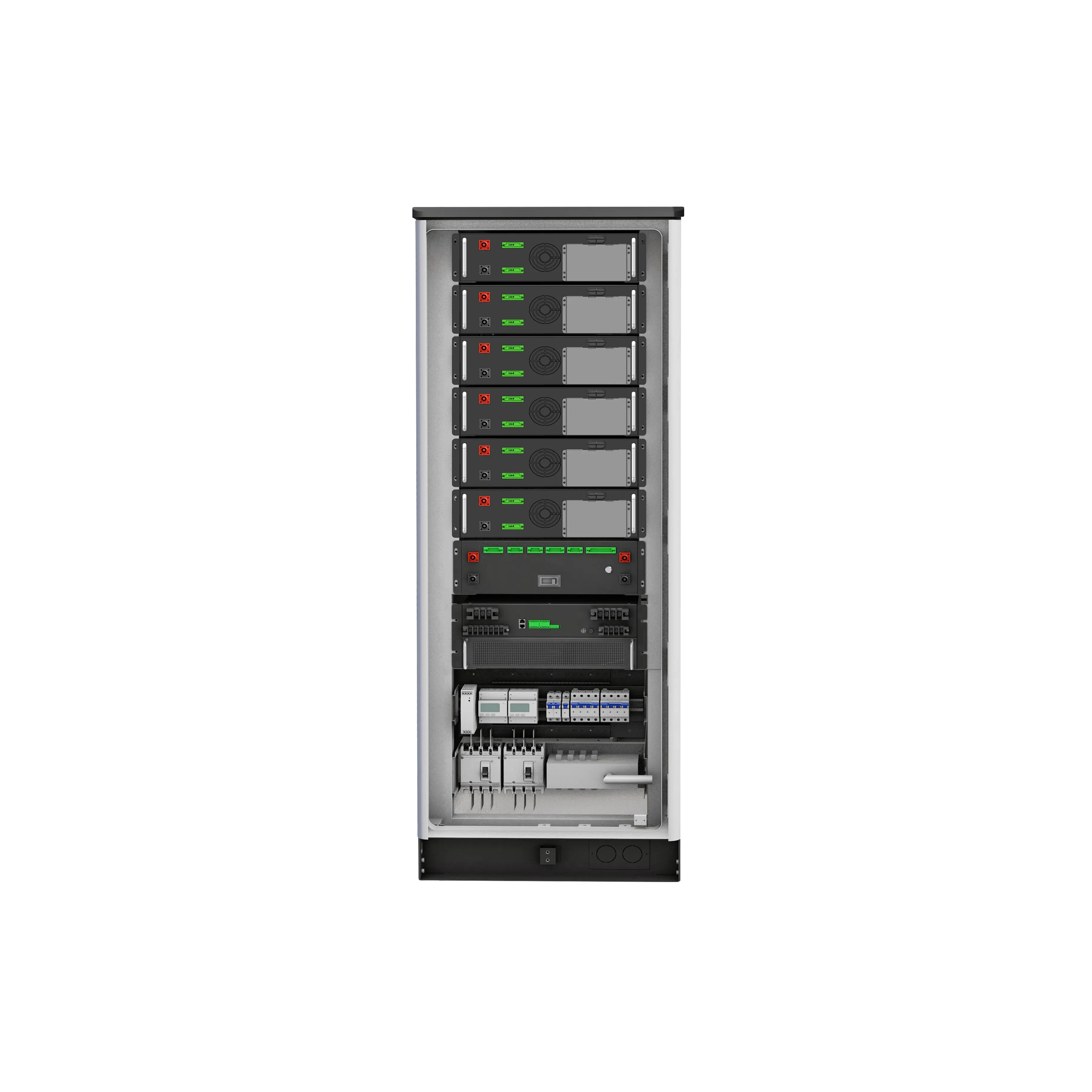

product details
System working principle diagram
Q&A
Company Advantages
· The production errors of AINEGY energy storage system are greatly reduced.
· Owing to our strict quality management system, this product is of high quality.
· Shenzhen Ainegy Technology Co., Ltd. has advanced research technology, professional management and strict quality control system.
Company Features
· AINEGY enjoys a good reputation in energy storage system market.
· We possess state-of-the-art production units. These machines feature not only excellent design but also can result in outstanding manufacturing quality. They ensure our constancy in product quality.
· Shenzhen Ainegy Technology Co., Ltd. is committed to providing elegant and timeless lifestyle energy storage system products. Inquire!
Application of the Product
The energy storage system produced by AINEGY can be used in many fields.
AINEGY is committed to providing customers with high-quality Power Wall,All in One Ess,Brick Type LiFePo4 Battery,Standing type LiFePo4 Battery,Cabinet Type LiFePo4 Battery,Charger&Inverter,12V/24V LiFePO4 Battery,Forklift LiFePO4 Battery,Household Energy Storage Power Battery,Lithium Battery,BMS,Inverter as well as one-stop, comprehensive and efficient solutions.
