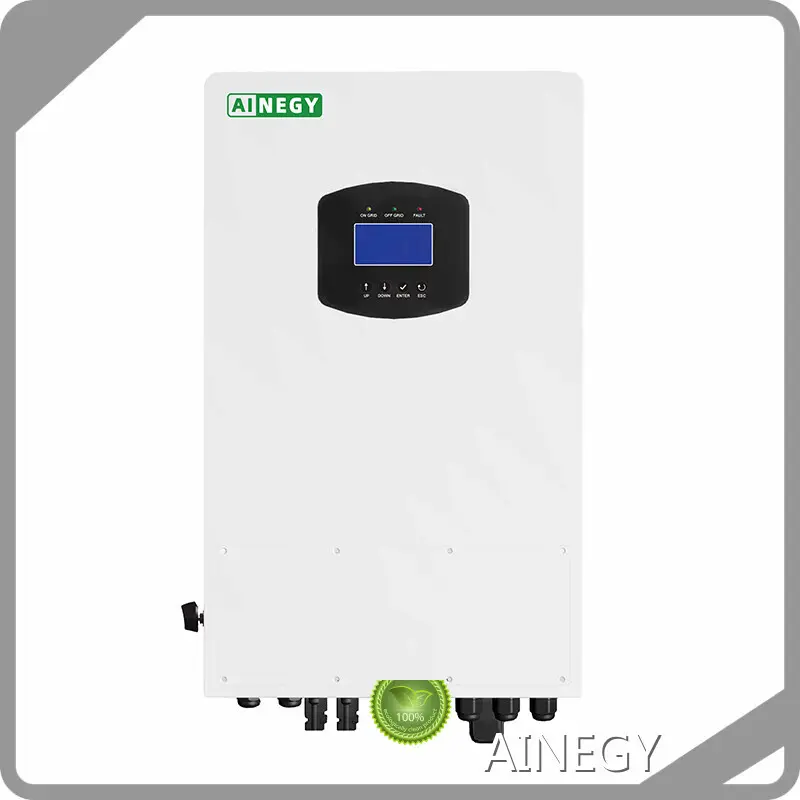

Good Selling 5kw Hybrid Inverter
Product details of the 5kw hybrid inverter
Product Introduction
AINEGY 5kw hybrid inverter is manufactured using the finest quality raw materials which are procured from the most trustworthy and certified vendors in the industry. The product has extremely stable performance, which can be used for a long time without damage. In fact, the product performs well than others in the industry.
Prduct Advantage
● IP65 waterproof
● 2 channels HV PV MPPT controller
● Fast charge current 100A
● Support RS485 and WiFi
● On-grid, off-grid and UPS
● Max support 6 sets parallel
Product Parameters
| Model Name | AIN-5KH1-A1 |
| Battery | |
| Battery Voltage | 48VDC |
| Battery Voltage Range | 41.5~58.5VDC |
| Battery Type | Li-ion Battery / LiFePO4 Battery |
| Communication Interface | RS485/CAN |
| Output/ Input (AC) | |
| Rated Power | 5500VA |
| Surge Power | 11000VA |
| Waveform | Pure sine wave |
| Rated Grid Voltage | 230VAC |
| Frequency | 50Hz / 60Hz |
| PV Input (DC) | |
| Max PV Power | 7000W |
| Max PV Voltage | 500VDC |
| Starting Voltage | 150V |
| MPPT Range | 120~430VDC |
| MPPT Quantity | 2 |
| Max PV Current | 120A |
| Off-grid Output | |
| Max Output Power | 5000W |
| AC Input Voltage | 230VAC |
| Frequency | 50Hz / 60Hz |
| UPS Switching Time | < 20mS |
| Overload Capacity | 110% 30S/120% 10S/150% 80mS |
| Efficiency | |
| Max Efficiency | 98% |
| Max Discharge Efficiency | 95% |
| MPPT Efficiency | 98% |
| Physical | |
| Dimension(D*W*H/mm) | 350*230*580 |
| Net Weight (kg) | 23.5kg |
| Communication Interface | USB/RS485/WiFi |
| Protection Degree | IP65 |
| Installation method | Wall Mounted |
| Environment | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10℃ ~ 50℃ |
| Storage Temperature | -15℃ ~ 60℃ |
product details
System working principle diagram
