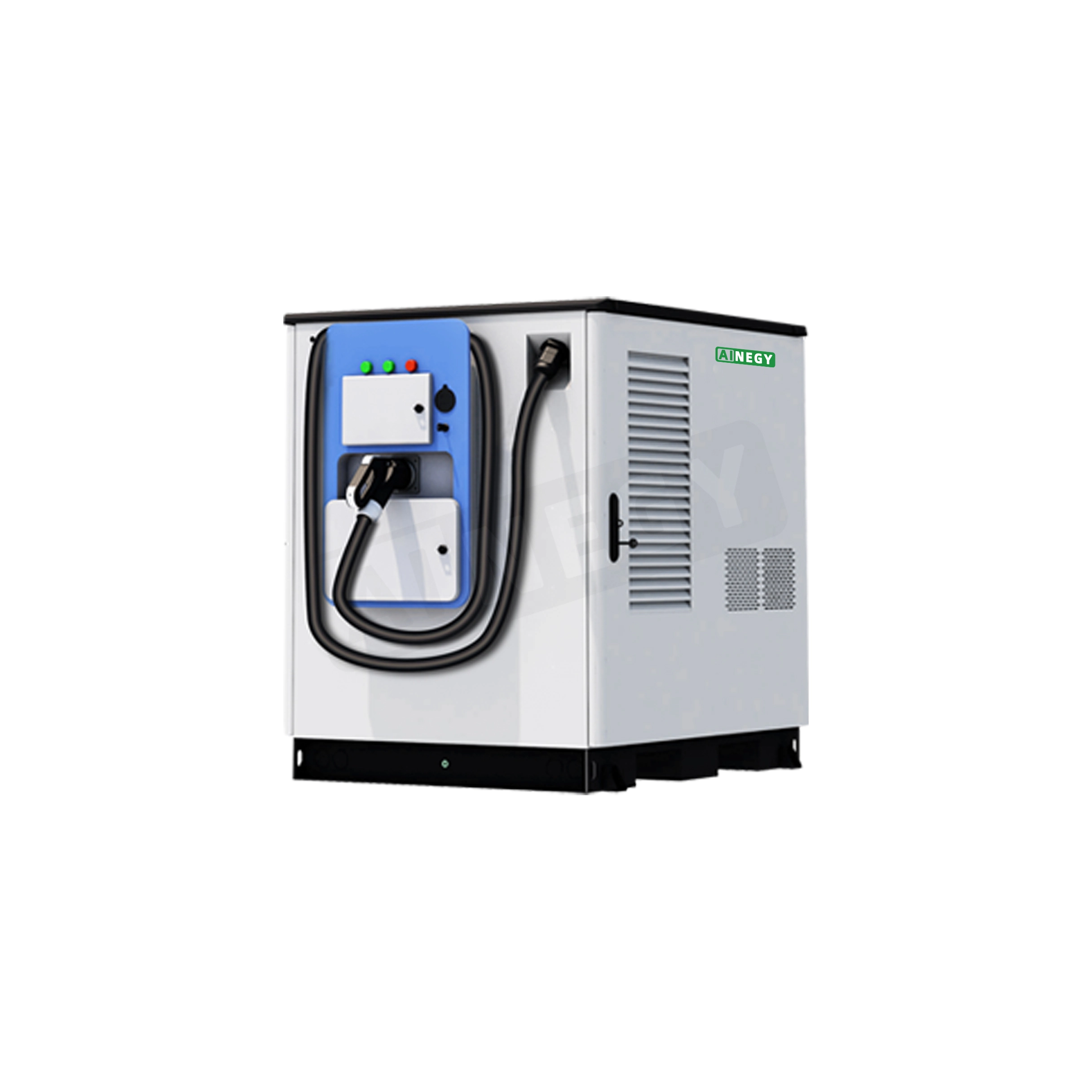

60kWh Solar Power Station for EV Charging With Battery Energy Storage System High Efficiency DC/DC Charger 60kW
The integrated photovoltaic storage and charging cabinet is a car charging product with high integration, integrated photovoltaic storage and charging, intelligent power distribution, reduced charging pile operation loss, easy to use, modular design, convenient installation, commissioning and after-sales, supports free switching of multiple operating modes, and is suitable for charging stations, charging operations, etc.
5.0
like
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Prduct Advantage
● GBT or CCS1/ CCS2/ CHAdeMO
● Integrated LiFePO4 Battery/ PV/ Charger Module
● Battery, PV and Charger DC Coupling
● DC/ AC/ PV recharging
Product Parameters
| Model |
IYP-60KWH-60KWM-CD1-HA1 |
IYP-148KWH-120KWM-CD2-HA1 | IYP-192KWH-120KWM-CD2-HA1 | IYP-209KWH-120KWM-CD2-HRL1 | IYP-373KWH-160KWM-CD2-HRL1 | IYP-417KWH-160KWM-CD2-HRL1 |
| Battery | ||||||
| Battery Type | LiFePO4 | |||||
| Rated Energy | 60KWh | 148KWh | 192KWh | 209KWh | 373KWh | 417KWh |
| Cooling Method | Air Conditioner | Liquid Cooling | ||||
| Fast Charger | ||||||
| Gun Type | GBT (CCS1/ CCS2/ CHAdeMO Optional） | |||||
| Max. Charger Power | 60KW | 120KW | 160KW | |||
| Charger Voltage Range | 60A | 120A | 160A | |||
| Operation Mode | Single-Alone (OCPP1.6J Optional) | |||||
| Quantity of Gun | 1 | 2 | ||||
| Gun Wire Length | 5m | 7m | ||||
| DC Recharge | ||||||
| Max. Recharge Power | 40KW | 80KW | 100KW | 100KW | 120KW | 200KW |
| Socket Type | GBT (CCS1/ CCS2/ CHAdeMO Optional） | |||||
| AC Recharge | ||||||
| AC Type | 3-phase(L1/L2/L3/N/PE) | |||||
| Max. Recharge Power | 20KW | 30KW | 40KW | 40KW | 80KW | 80KW |
| PV Recharge | ||||||
| Max. Power | 35KW | 120KW | ||||
| Max. PV Voltage | 830Vdc | |||||
| MPPT Voltage Range | 200~800Vdc | |||||
| Quantity of MPPT Channel | 2 | 1 | ||||
| AC OUT (Off-grid) | ||||||
| Rated Power | 20KW | 25KW | 100KW | |||
| AC Voltage | 400Vac/200Vac（3-phase) | |||||
| Rated Frequency | 50Hz/60Hz | |||||
| Max. AC Current | 30A | 35A | 150A | |||
| General parameter | ||||||
| Communication type | RS485/WiFi | |||||
| Protection grade | IP54 | |||||
| Fire protection system | Aerosol | |||||
| Operating temperature | -15~50℃ | |||||
| Humidity range | 5%~95% | |||||
| Altitude | <3000m | |||||
| PCS cooling method | Intelligent air cooling | |||||
| Dimensions(W*D*H) | 990*1320*1240mm | 1800*1100*1860mm | 1800*1200*1860mm | 1800*1380*2060mm | 2200*1420*2350mm | 2200*1420*2350mm |
| Weight | 600kg(about) | 1600kg(about) | 1900kg(about) | 2000kg(about) | 2600kg(about) | 3000kg(about) |
product details
60kwh+60kw-1
System working principle diagram
Q&A
1
What certificates for your products you have?
IEC, UL, CE, CEI, RoHS, UN38.3, MSDS, FCC, PSE, VDE, Dangerous Package Certificate, etc.
2
For your Battery, what brand inverter they can be compatible?
Deye, Growatt, Goodwe, Sofar, Pylon, Victron, Solis, SMA, Luxpower, Voltronics, Megarevo, SRNE etc 20pcs above Global Famous Brand.
3
Which country you export already?
Japan, Austria, Germany, Poland, Italy, USA, South Africa, Nigeria, Myanmar, Philippines etc.
4
Do you support ODM? Can we get a customize logo and color on your products?
Yeah. We support OEM, besides we can offer ODM Research and Development.
5
How about your Aftersales?
We can support our core technical engineer team remote solve your troubles, remote solution video, and upgrade program.If no working products we can replacement.
